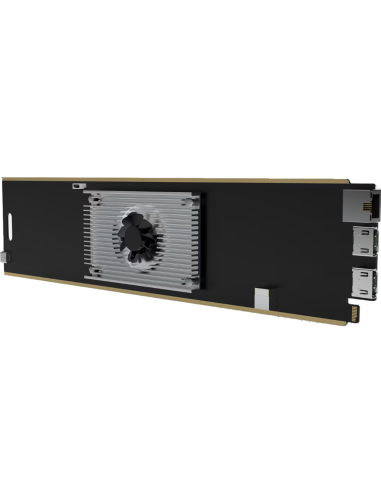

Kiloview FN-60 Rackmount Card 4K60 HDMI 2.0 and NDI 6 Bidirectional Card

The FN-60 is a broadcast-grade 4K UHD bi-directional conversion card designed for seamless integration into the Kiloview RF02 Cradle Series chassis. Featuring an HDMI 2.0 input with loop-out functionality, it handles ultra-low latency encoding and decoding up to 4Kp60 using high-level protocols such as NDI High Bandwidth, NDI HX/HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP.

With full support for 10-bit 4:2:2 HDR color processing, NDI 6 compatibility, and the NDI Bridge utility, the FN-60 delivers crisp, professional-grade images, perfect for live sports, events, broadcast, theaters, and global collaborative productions.

Fully manageable via KiloLink Server Pro, it offers centralized control, PTZ camera management, counting support, NAS recording, and operates within a robust cooling ecosystem for reliable, long-term use.

Features Highlights

• Bidirectional 4K HDMI 2.0 encoding and decoding (up to 4Kp60)
• Supports ultra-low latency transmission and high-quality image delivery
• Compatible with NDI High Bandwidth, NDI HX/HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP
• NDI 6 ready with NDI Bridge support for wide-area IP workflows
• High-fidelity 10-bit 4:2:2 HDR color processing
• HDMI loop-out for local monitoring
• PTZ camera control and counting signal integration
• NAS recording for direct-to-storage workflows
• Fully managed via the KiloLink Server web interface Pro
• Designed for seamless operation within the RF02 Cradle Series

Specifications

• Video Input Interface 1 × HDMI 2.0
• Video Output Interface 1 × HDMI 2.0
• Video Resolution Input: Up to 3840×2160 @60fps (4Kp60), min. 720p50
• Output (decode or loop-out): Up to 3840×2160 @60fps (4Kp60), min. 720p23.98
• NDI® Codec Features SpeedHQ (NDI CODEC): SHQ0, SHQ2
• AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to level 5.2
• HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to level 5.1 High
• Audio Encoding/Decoding NDI Audio, AAC-LC, software-expandable
• Typical Bitrates SpeedHQ (NDI CODE):
• 4Kp60: 250Mbps
• 1080p60: 132 Mbps
• 1080p30/1080i60: 112Mbps
• 720p60: 105 Mbps
• 480i60: 62.5 Mbps
• AVC (H.264):
• Adjustable from 1 to 120 Mbps
• >24Mbps (4Kp60), >10Mbps (1080p60)
• HEVC (H.265):
• Adjustable from 1 to 120 Mbps
• >15Mbps (4Kp60), >6Mbps (1080p60)
• Internet Protocols NDI High Bandwidth, NDI HX/HX3, SRT, RTSP, RTMP, HLS, UDP, RTP (*encoding only)
• NDI® Code Capability Supports NDI High Bandwidth, NDI
• Recording Supports NAS recording
• PTZ Control Network-based PTZ control
• Management Web UI and remote control via KILOVIEW KiloLink Server Pro
• USB 1 × USB 3.0 Type-A
• Power Powered by RF02 chassis
• Power Consumption 16W Max

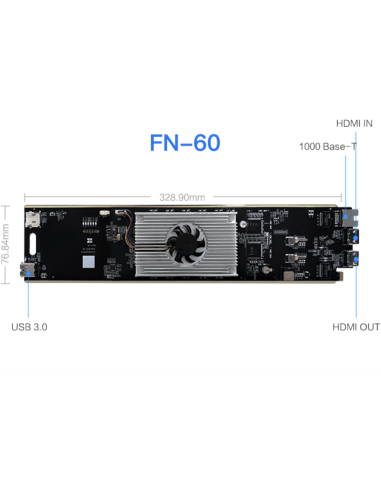

• Dimensions 86.84 × 238.9 mm
• Operating Temperature -20℃ to 45℃
• Storage Temperature -20℃ to 70℃
