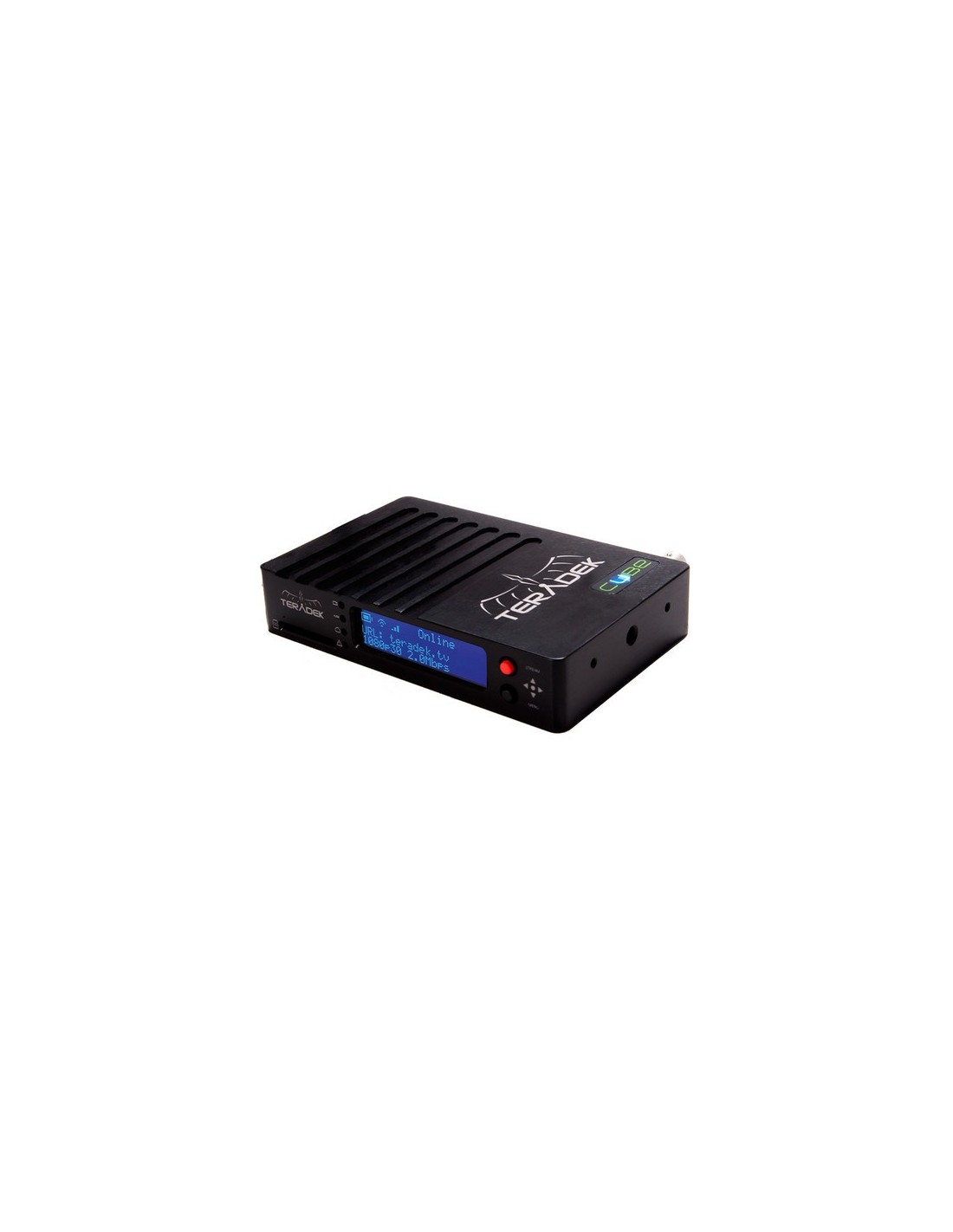

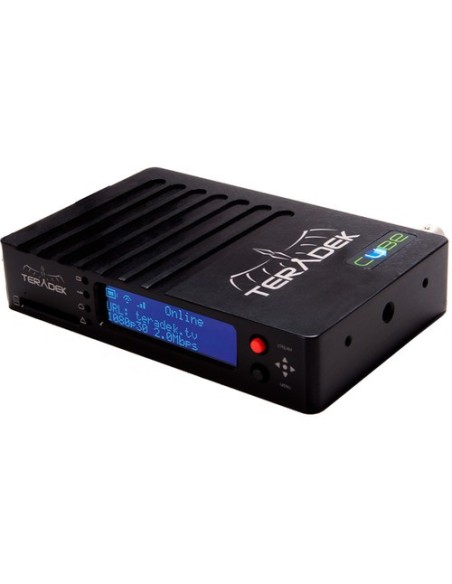

Teradek CUBE 605 HD-SDI ENCODER 10/100 USB

Designed for Professionals

Cube is manufactured in the USA and features 3G-SDI and HDMI inputs along with a new, high-powered 802.11AC WiFi adapter. Cube’s rugged aluminum chassis and professional locking LEMO connector ensure it’s ready for constant use in any environment.

Multi-interface streaming with ShareLink

Never struggle with bandwidth limitations again. The Cube 600 series includes ShareLink™, a network aggregation service based on Teradek’s bonding technology. ShareLink allows you to combine bandwidth from several network interfaces for more reliable, higher quality streaming. Learn more about ShareLink.

Higher Bitrates

The Cube 600 series encodes video at bitrates up to 15 Mbps for pristine quality in any application. When bandwidth is limited, adaptive bitrate allows Cube to automatically adjust and stream at the highest quality achievable.

Improved Wireless Performance

Built-in 802.11ac dual band (2.4/5GHz) WiFi offers higher data throughput and stronger wireless connectivity at longer distances.

iPad Monitoring for All

Cube 600 supports monitoring on up to 6 devices iOS devices simultaneously so clients, crew, and director can all see the action.

Built-in Color Grading

Support for 33 point 3D LUTs and Pomfort LiveGrade integration allows your creative team to monitor graded footage on set or off. Looks can be applied to the stream itself or controlled independently within the TeraView app.

All New User Interface

Cube's intuitive new user interface makes it easier than ever to configure your device. Pages load more quickly, configuration changes apply instantly, and all encoder statuses are updated dynamically.

Onboard Recording

Cube’s built-in SD card slot gives you the option to save high quality backup recordings for post-event editing.*

*Recorded video file bitrate and resolution match encoded stream quality.

Test Pattern Generator

A configurable test pattern generator allows you to test your stream without connecting a video source and prevents interruptions if video sync is lost.

Bi-directional IFB

Bi-directional IFB allows camera operators and crew to communicate in real-time, even if they’re half a world away.

Technical Specs

The Teradek Cube 605 is an H.264 encoder that transmits HD video Ethernet, and cellular.

Technical Specs

Video Inputs

• HDMI 1.4a : Full Size and 3G-SDI, HD-SDI, SD-SDI: BNC

Supported Video Input Resolutions

• 1080p 50/59.94/60*
• 1080p 23.98/24/25/29.97/30
• 1080PsF 23.98/24/25
• 720p 50/59.94/60
• 480p/576p (HDMI only);480i/576i (Note: 480/576 i/p do not work on HDMI in current hw)

Video Codec

• Compression Algorithm: Baseline, Main and High Profile H.264
• Resolutions: up to 1080p30/1080i60
• Bit Rate: 250 Kbps to 15 Mbps
• Built in Video Scaler and Deinterlacer

Audio

• Audio Compression: AAC-LC, MPEG Layer 2
• Embedded Audio Input
• Analog Line or Mic in, adjustable gain
• Headphone output, adjustable volume

Protocol Support

• Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
• Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS (MPEG-TS is an optional paid license)

Physical

• Dimensions: 2"W x 1"D x 4"H
• Weight: 6oz

Interfaces

• Feature-rich Mobile App for configuration and control and Preview
• Feature-rich WebUI for configuration and control
• OLED LCD Display with joystick navigation buttons
• On/Off and Reset Switch
• Full Size SD
• Powered USB 2.0 host port

Network

• Ethernet: 10/100/1000BASE-T
• WiFi: None
• USB Modem support**

Power

• 2 Pin Lemo Power input
• Nominal Power Consumption: 5W - 8W
• Auxiliary Power Input: 6-28V DC

Environmental

• Temperature:0 to 40 Celsius degree

Color Management

• CDL/1024 1D LUT (supports 10-bit color)
• 33x33x33 3D LUT (supports 10-bit color)
• HDMI/SDI cross conversion

* 1080p60 output is not supported
