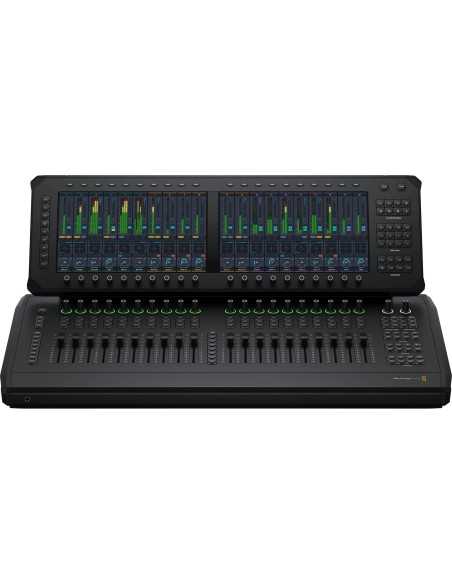

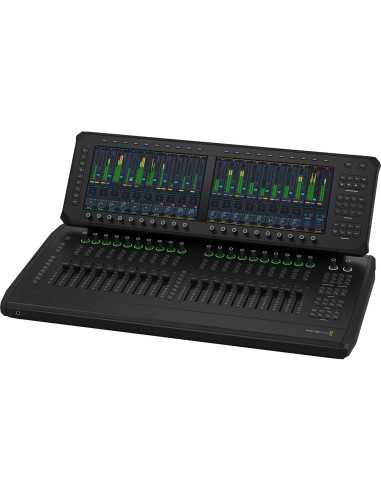

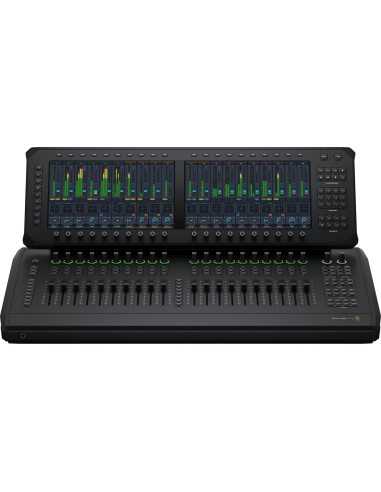

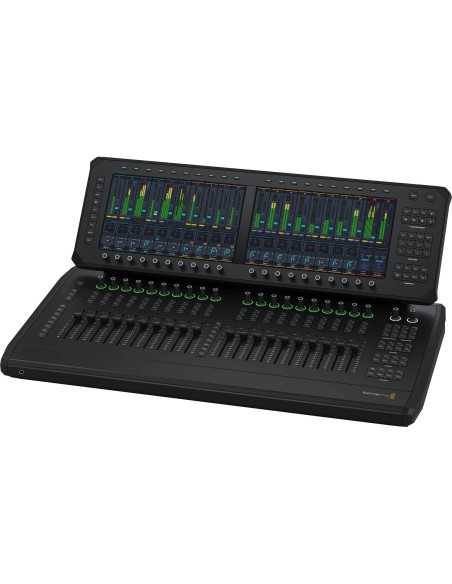

Blackmagic Design Fairlight Live Audio Panel 20 Desktop Control Surface

Enjoy comprehensive control over Fairlight Live during mid-size productions with the Blackmagic Design Fairlight Live Audio Panel 20, a desktop control surface sporting 20 motorized faders, a plethora of buttons and knobs, and two 11.6" color 1080p touchscreens. With the screens, you can easily view channel strips, levels, EQ, dynamics, and plug-in interfaces at a glance.

With two screens, you have better support for projects with higher channel counts, without taking up excessive desktop space. The Audio Panel 20 offers complete control over Fairlight Live, including layers, busses, matrix, aux channels, VCA processing, submasters, and talkback. Numerous dedicated keypad sections are ideal for immediate access to segments like global controls, cues, master faders, and more. Plenty of connections are onboard, including 3-pin XLR mic input and line output, 5-pin XLR headset I/O for talkback, two 10G 2110 IP RJ45 ports, HDMI, headphone connections on the front and rear, and more. Dual redundant AC power inputs ensure you are safe from power loss during mission-critical operations. The device supports video input up to 4K60 and video output 1080p. This control panel includes a copy of Fairlight Live.

Comprehensive Controls

• 20 motorized faders
• 20 multifunctional rotary knobs with LED ring indicators
• Select, solo, and mute for each channel
• Channel Focus for processing and input controls on selected channels
• 20 contextual rotary knobs to adjust associated parameters
• 20 contextual buttons to activate functions or adjust parameters
• On Line button follows the timecode from external sources
• On Air button locks the panel
• Player/Recorder keypad for recording performances and rehearsals
• Cue Player keypad plays kingles and carts for SFX stingers with MIDI cue support
• Store and recall mixer settings with the Snapshots keypad
• Special keypads for Master view/faders, global controls, and talkback

Talkback Functionality

The Fairlight Live Audio Panel 20 is set up for flexible talkback functionality. The control surface features an integrated talkback mic, support for 5-pin XLR headsets, 3-pin XLR mic inputs, two 1/4" headphone outputs (one front, one rear), and two 3-pin XLR monitor outputs. You can select talkback groups, direct to a channel, or send your talkback signals to all. The Audio Panel 20 can configure up to four talkback groups.

Connectivity

• The Fairlight Live Audio Panel 20 offers a plethora of connections, including:
• XLR 3-pin mic input
• XLR 5-pin headset I/O
• Two 10G 2110 IP video and audio RJ45 ports
• One RJ45 port for control
• Stereo 3-pin XLR line output
• HDMI port for video/audio
• USB-C port
• 1/4" TRS headphone connections in the front and rear
• Redundant power connectivity with two universal IEC AC ports

Items Included

Blackmagic Design Fairlight Live Audio Panel 20 Desktop Control Surfac
