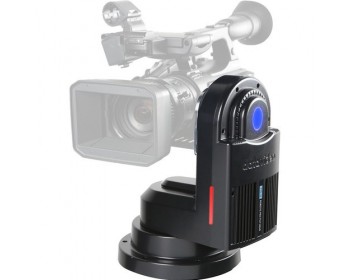

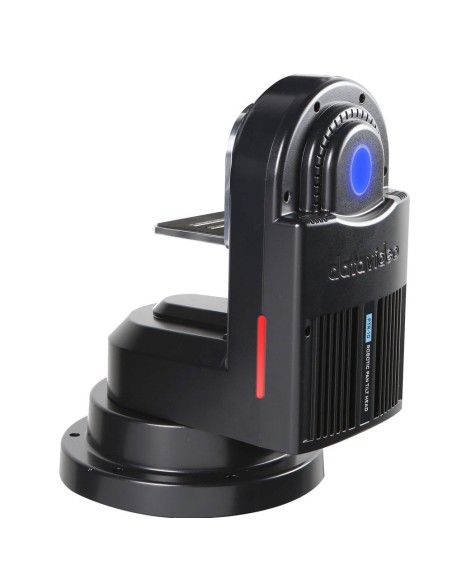

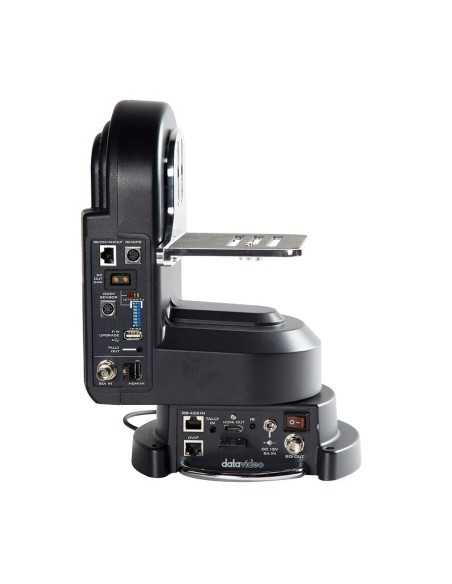

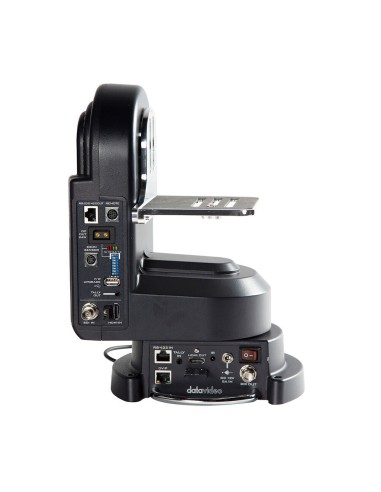

DataVideo PTR-10MKII Robotic Pan and Tilt Head

Robotic Pan Tilt Head Transform any camera into a PTZ camera.

Multiple signal interface

SDI, HDMI, RS-232, RS-422, DVIP, Tally, LANC

Diversified controller options

RMC-180, RMC-300C with Control of Pan, Tilt, Zoom and much more

Strong and sturdy aluminum alloy material design

Tally light built-in, great design for Live event

Supports Zoom control

For Datavideo block cameras and various brand lens with power supported

PTR-10 Robotic Pan Tilt Head

Video Interface HDMI x 1

SDI x 1

Video Output 2160p 29.97/25

1080p 59.94/50

1080i 59.94/50

720p 59.94/50

Control Unit RMC-180

RMC-300C

VISCA Protocol Controller

IP Control

IR remote

Panning / Tilting Range Pan: 340°

Tilt: ±45°

Panning / Tilting Speed Pan: 0.2~15° /Sec

Tilt: 0.1~10° /Sec

Preset Pan/Tilt position 50

Control Distance 1,200M by RS422

100M by DVIP

Control Protocal Sony VISCA

DVIP

Control Input RS-422

DVIP

Maximum Load 4 KG Max

Control Output RS-232

RS-422

BX-Lens

LanC

Power Requirement DC 12V~ 18V, 3A (Without Camera)

DC 12V~ 18V, 5A (With Camera)

Power Supply DC 12V, 2A Max

Operating Temp. Range 0~40 C°

Weight 3.4 kg

Dimension (LxWxH) 230 x 190 x 300 mm
