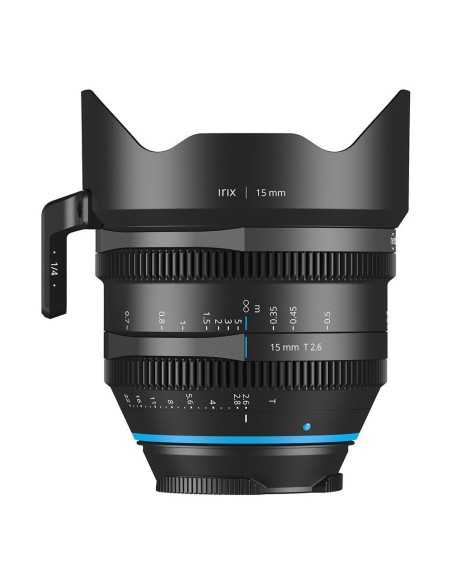

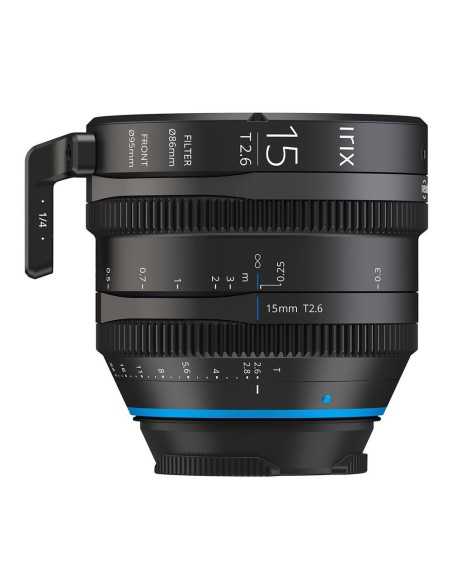

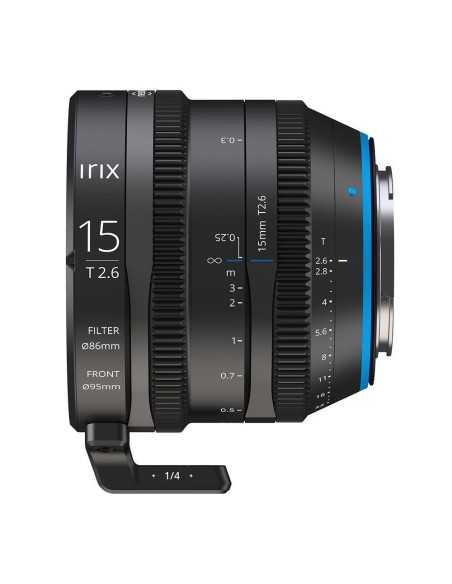

Irix Cine 15mm T2.6 for PL (Metric)

This 110 degree Field Of View wide-angle 15mm T2.6 cine version is made for Canon EF, Sony E mount, MFT, Canon RF, Nikon Z, L Mount and PL Mount and covers a Large Format sensor. That means that it easily covers the sensor of an EOS R5, but also a RED Monstro or a Sony Venice.
Of course you can also use it on an MFT or Super-35 sensor - with an x2 or x1.6 crop.

The housing of this lens is of course specially made for video, with an all weather seal with a fixed rear lens element, to prevent the lens from being susceptible to dust at the back. The minimum focus distance is 28cm, measured from the sensor.

Optical Properties
The lens is made with the highest quality optics. The entire structure consists of 15 elements arranged in 11 groups (3 HR lenses, 2 ED and 2 ASPs). The precise construction of the lens ensures incredible optical properties and image sharpness, vivid colors and an almost complete absence of distortions, which is an extremely rare property of lenses this wide.

The lens aperture is made of 9 rounded blades, ensuring a pleasant background blur and smooth adjustment of the T value from T2.6 to T22. In addition, lens breathing has been reduced to a minimum.

Functionality and Innovation
Irix Cine 15mm T2.6 is equipped with a 180-degree ring that allows accurate rotation and precise and quiet focus pulling. Markings on the lenses are available in metric and imperial versions, meaning users are not forced to change their habits.

An innovative solution used in all Irix Cine lenses is the adaptive ring, which adds to the lens’ overall ergonomics; both in manual sharpening and also when using follow-focus mechanisms. Irix Cine 15mm is small lightweight as well. All Irix cine lenses have approximate dimensions and weight, which allow quick and trouble-free setup changes without needing to overhaul the rest of the film set. The lens is equipped with a magnetic mounting system (MMS), which connects accessories, such as lens hoods (not included in the kit).

Ready for any weather conditions
The solid and durable construction of the Irix Cine 15mm guarantees work in any environment. The lens is sealed in 4 key places, which allows you to work regardless of weather conditions, rain, sand, and dust. Engraved markings on the lens have been filled with paint reacting to UV light, thanks to which filming in difficult lighting conditions becomes much easier. In addition, the lens allows the use of filters, so that work in bright environments becomes much simpler.

Cinema Standard
Irix Cine 15mm was designed in accordance with the standards of the professional film industry, being the result of traditional and modern solutions. Irix Cine 15mm has a front filter size of 95mm and Mod 0.8 rings, which ensure compatibility with most accessories available on the market.

Lightweight and compact design
Irix 15mm T2.6 Cine meets the requirements of all filmmakers. No matter if you are into building professional setups or prefer to shoot run-and-gun this lens is for you. Due to the aluminium-magnesium alloy construction the lens only weights 1kg.

Features
Covers Full-Frame Sensor Size
43.3mm Image Circle, Arry PL Mount
Aperture Range: T2.6 to T22
Luminous Focus Marks in Meters
95mm Front Diameter
Rounded, 9-Blade Aperture
180° Focus / 75° Iris Rotation
Adaptive Focus Ring for Manual/Motor Use
4 x Seals for Weather Resistance

In the box
Irix Cine 15mm T2.6 for PL mount Metric
front lens cap
lens support foot 1/4”
rear lens caps

Compatibility
All Cine Cameras
ARRI ALEXA 35
ARRI ALEXA 35 Live
ARRI ALEXA Mini LF
ARRI ALEXA SXT
ARRI AMIRA
Blackmagic Design Cinema Camera 6K
Blackmagic Design PYXIS 6K
Blackmagic Design URSA Cine 12K
Blackmagic Design URSA Cine 17K
Blackmagic Design URSA Mini 4.6K
Blackmagic Design URSA Mini 4K
Blackmagic Design URSA Mini Pro 12K
Canon EOS C200
Canon EOS C300
Canon EOS C300 Mark II
Canon EOS C500
Canon EOS C700
Canon EOS C700 FF
Canon EOS C700 GS
For.A FT-ONE
Kinefinity MAVO LF MKII
Kinefinity MAVO S35 MKII
Panasonic VariCam 35
Panasonic VariCam 35B
Panasonic VariCam LT
RED DIGITAL CINEMA DSMC2 BRAIN
RED DIGITAL CINEMA DSMC2 BRAIN Monochrome
RED DIGITAL CINEMA RANGER
RED DIGITAL CINEMA V-RAPTOR XL
RED DIGITAL CINEMA V-RAPTOR XL X
RED DIGITAL CINEMA WEAPON
Sony BURANO
Sony BURANO CineAlta Digital Cinema Camera
Sony PMW-F3
Sony PMW-F5
Sony PMW-F55
Sony SRW-9000PL
Sony VENICE 2 6K Digital Motion Picture Camera
Sony VENICE 2 8K Digital Motion Picture Camera
Sony VENICE 2 LIVE Cinematic Production Package
Sony VENICE 4K LIVE BUNDLE
Sony VENICE 6K Digital Motion Picture Camera
Z CAM E2-F6
Z CAM E2-F8
Z CAM E2-S6

Specifications
Type wideangle
Mount PL Mount
Focal length 15mm
Sensor size Full frame
Transmittance T2.6
Apreture blades count 9
Lens composition 15 elements in 11 groups
Focal lenght type prime
Filter diameter 86mm
Front diameter 95mm
Focus type Manual
Minimum focusing distance 0.25m

Viewing angle (horizontal)
Full Frame 100°
S-35mm 1.39x - 79.4°
APS-C 1.53x - 76.5°
APS-C 1.62x - 73°
MFT 2.0x - 59.9°

Aperture ring rotation angle 75°
Aperture ring gear pitch 0.8 M
Aperture ring number of teeth 110
Focus ring distance scale metric
Focus ring rotation angle 180°
Focus ring gear pitch 0.8 M
Focus ring number of teeth 117
Size (mm) 88 x 95mm
Weight 915 gr
