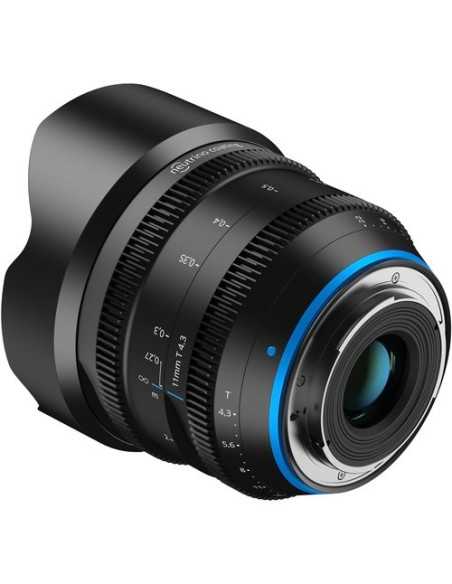

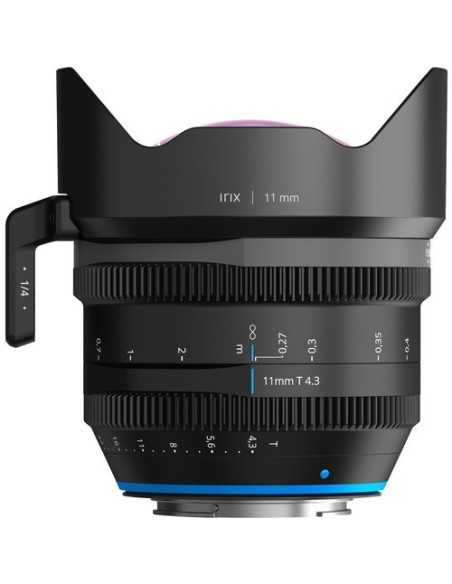

Irix Cine Lens 11mm T4.3 for Canon (Metric)

With its ultra-wide-angle field of view, Irix 11mm T4.3 Cine brings a new dimension to the cinematic world. The unique lens with extremely short focal length and leading parameters is equipped with everything both amateur and professional cinematographers would need to create their masterpieces.
The lens comprises functionality, stunning visuals and outstanding performance in any environment – allowing filmmakers to discover completely new areas in film image creation.

Irix Cine 11mm is a >43,3mm Full Frame lens, covering Full Frame 35, Super 35, Red Dragon 6K, Arri Alexa, APS-C, MFT, Super 16 and other sensors. It’s so versatile it’ll fit YOUR favorite equipment – so that you can enjoy every second of shooting with the tools you already love.

Put our Irix Cine 11mm to work and enjoy the comfort and functionality that it offers. Available in the most popular industry mounts: Canon EF, Sony E, Olympus / Panasonic MFT, Canon RF, Nikon Z, L Mount and Arri PL-mount, this superior cine lens is ready for action whenever you are.

The same, but different optics
The lens optical system is based on the new optical formula, developed especially for cinematic purpose. It consists of 16 optical elements, which four are made with high refractive index (HR) glass, three other have aspherical surfaces and last two are made with low-dispersion glass (ED). The use of large front lens and other special glass elements provides crisp cinematic shots in a resolution up to 8K while keeping the focus "breathing" effect at the lowest level. The lens offers large maximum T number of 4.3 which can be reduced to T22, thanks to rounded shape of iris blades.

Functional and highly innovative

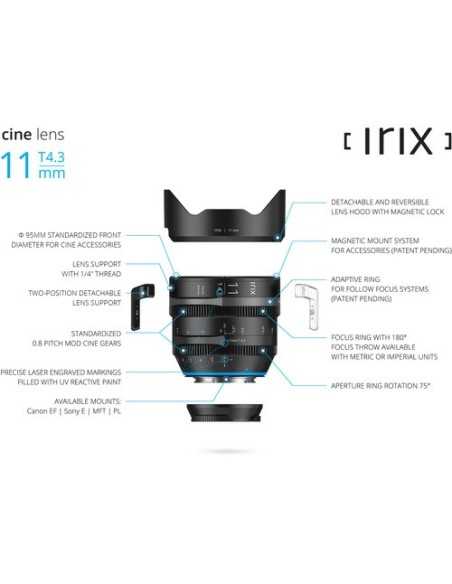

When designing the lens mechanical system of 11mm T4.3, we used newly developed technical solutions that have been successfully implemented in the Irix Cine 150mm T3.0 lens. The new Multi Start Thread focusing mechanism allows quiet and precise focusing even under adverse weather conditions such as rain, humidity or extreme temperatures. The focusing geared ring rotates 180 degrees and depending on the lens version, has focusing scale with metric or Metric units.
Thanks to the another innovative solution like adaptive ring, the Irix Cine 11mm T4.3 ensures great ergonomics of operation both by hand and with follow focus mechanism. Moreover, despite of the very short optical system layout, geared rings of focus and aperture were placed at the same height as in other Irix Cine lenses - all for better ergonomics and more intuitive use.
The exceptional functionality and innovative solutions are a distinctive feature of all Irix products. The same applies to the Irix Cine 11mm T4.3, whose extremely compact design (weights 1,1 kg) has been also equipped with an innovative Magnetic Mount System for accessories. The MMS system allows quick and easy attachment of variety dedicated accessories.

Prepared for all weather conditions
The ultra wide field of view of the Irix 11mm T4.3 means that its natural work environment is outdoor. It’s durable magnesium housing and numerous rubber seals guarantee the safety of both the optical system and the camera sensor in an every weather conditions.

Designed to work in accordance with film industry standards
The 11mm T4.3 is another lens of the Irix Cine line that proves that innovative technical solutions can perfectly harmonize with well-established film industry standards. The lens has a front flange with a diameter of 95mm and geared rings in the Mod 0.8 standard, which ensures its compatibility with most cine gear accessories. Attention to maintaining the standard also applies to the family of Irix cine lenses whose geared rings are in the same position and have unified rotation angle.

Irix Cinematic
The new line of Irix Cine Lenses is created in close cooperation with professional filmmakers; their ideas and suggestions were an important factor in the design process. The designers earlier experience in the field of photography led us to create new and better solutions for the Irix Cine products.

Features
full frame sensor coverage with 43.3 mm image circle
Ultra HD 8K ready optics
extremely short focal length of 11mm
super-panoramic 123 degree viewing angle in a 2.39:1 widescreen format
very compact size and low weight
ultra-low focus breathing effect
weather-sealed construction
standardized front accessory diameter 95mm
Magnetic Mount System for Irix Cine accessories
compatibility with various follow-focus system

In the box
IRIX 11mm T4.3 Cine Lens (Canon EF, Meters, Black)
Front Cap
Rear Cap
Support Foot (1/4"-20)

Compatibility
All Cine Cameras
Blackmagic Design Cinema Camera 6K
Blackmagic Design PYXIS 6K
Blackmagic Design Pocket Cinema Camera 6K
Blackmagic Design Pocket Cinema Camera 6K G2
Blackmagic Design Pocket Cinema Camera 6K Pro
Blackmagic Design URSA Cine 12K
Blackmagic Design URSA Mini 4.6K
Blackmagic Design URSA Mini 4K
Blackmagic Design URSA Mini Pro 4.6K
Blackmagic Design URSA Mini Pro 4.6K G2
Canon EOS C100
Canon EOS C100 Mark II
Canon EOS C200
Canon EOS C300
Canon EOS C300 Mark II
Canon EOS C300 Mark III
Canon EOS C500
Canon EOS C500 Mark II
Canon EOS C700
Canon EOS C700 FF
FREEFLY Ember S2.5K
FREEFLY Ember S5K
JVC GY-LS300
Panasonic AU-EVA1
Panasonic VariCam LT
RED DIGITAL CINEMA DSMC2 BRAIN
RED DIGITAL CINEMA EPIC-W
RED DIGITAL CINEMA Komodo
RED DIGITAL CINEMA RAVEN
RED DIGITAL CINEMA SCARLET-W
Z CAM E2-F6
Z CAM E2-F6 MKII
Z CAM E2-F6 Pro
Z CAM E2-F8
Z CAM E2-S6
Z CAM E2-S6 MKII
Z CAM E2-S6G

Camcorders
Blackmagic Design URSA Broadcast G2

Other
Canon EOS 1D X
Canon EOS 1D X Mark II
Canon EOS 1D X Mark III
Canon EOS 5D Mark II
Canon EOS 5D Mark III
Canon EOS 5D Mark IV
Canon EOS 5DS
Canon EOS 5DS R
Canon EOS 6D
Canon EOS 6D Mark II
Canon EOS 70D
Canon EOS 77D
Canon EOS 7D Mark II
Canon EOS 80D
Canon EOS 90D
Canon EOS Rebel SL1
Canon EOS Rebel SL2
Canon EOS Rebel SL3
Canon EOS Rebel T5
Canon EOS Rebel T5i
Canon EOS Rebel T6
Canon EOS Rebel T6i
Canon EOS Rebel T6s
Canon EOS Rebel T7
Canon EOS Rebel T7i
Canon EOS Rebel T8i

Specifications
Focal Length 11mm
Maximum Aperture T4.3
Lens Mount Canon EF
Lens Format Coverage Full Frame
Filter Thread No
Image Stabilization No
Electronic Communication No
Image Circle 43.3 mm

Angle of View
Full FrameHorizontal: 117°
Super 35Horizontal: 99.3°
APS-C (1.5x)Horizontal: 93.8°
APS-C (1.6x)Horizontal: 90.6°
MFTHorizontal: 78.6°

Focus Scales Metric
Optical Design 15 Elements in 11 Groups
Minimum Focus Distance From Camera Sensor: 10.63" / 0.27 m
Diaphragm Blades 9, Rounded
Weight 1.1 Kg
