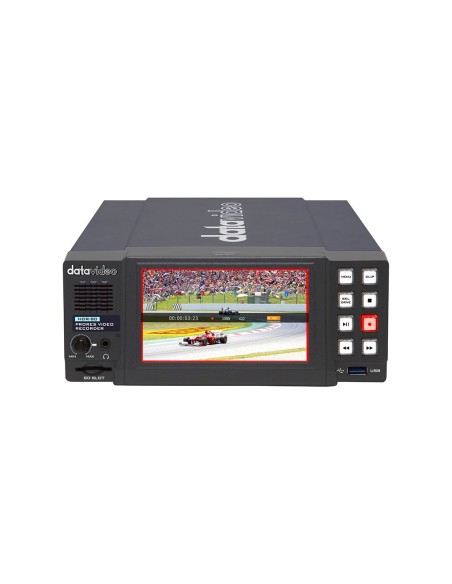

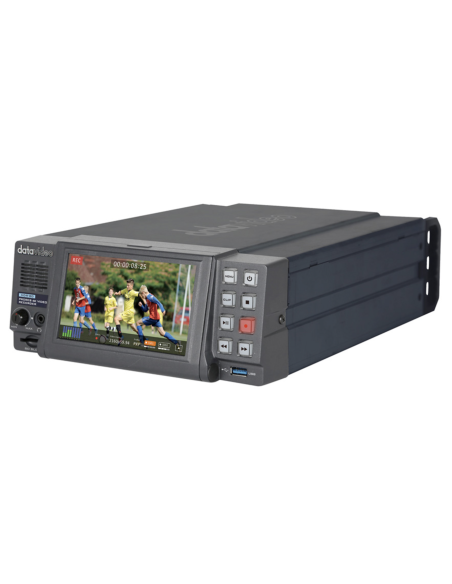

Datavideo HDR80 HD/SD ProRes Video Recorder

HDR-80

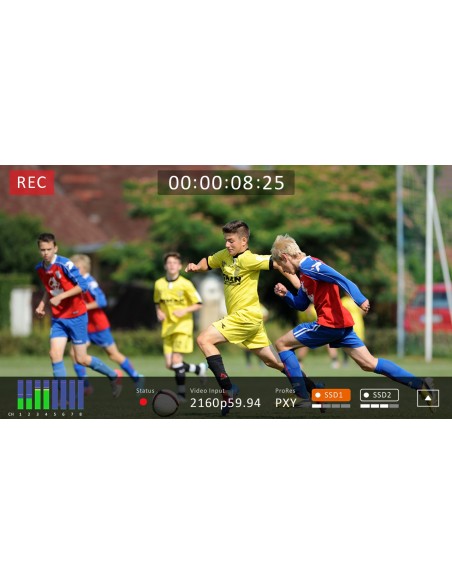

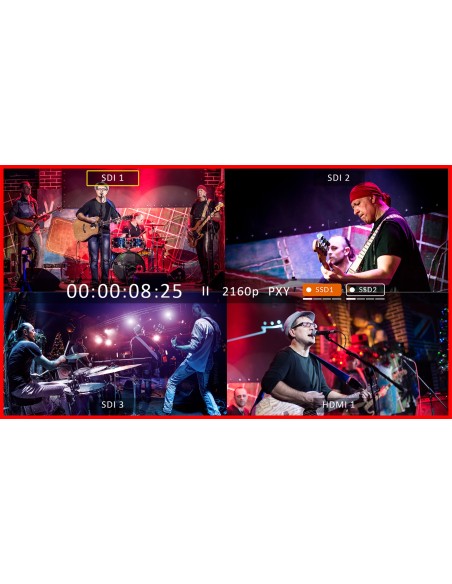

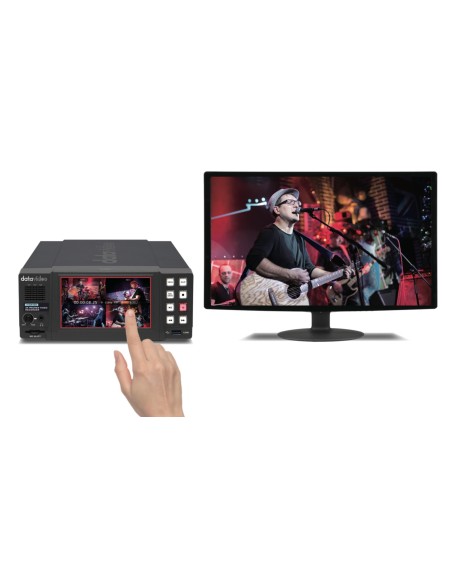

Large 5" LCD Touch screen for operating and monitoring

The HDR-80 has a built-in 5-inch touch screen, allowing you to easily configure parameters and view the video.

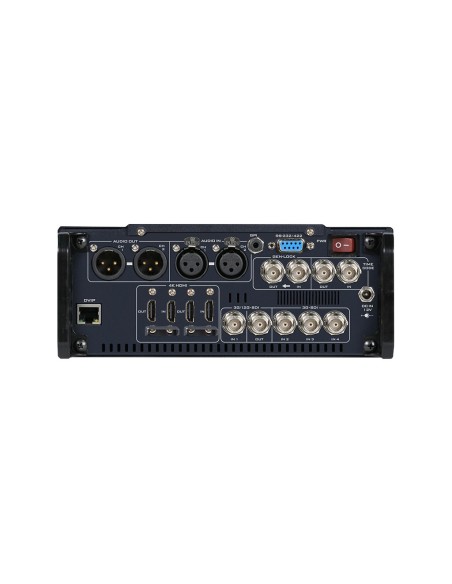

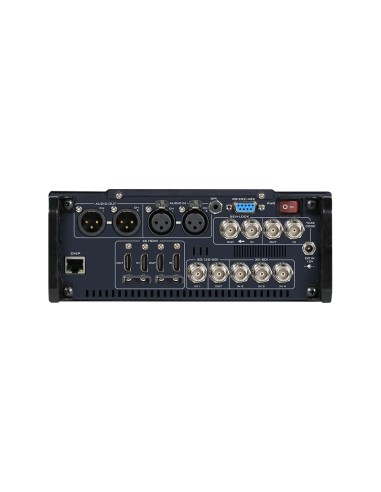

Supports multiple input and output configurations
1 x 3G/HD/SD-SDI and 1 x HDMI input, output with embedded audio.



Convenient for post-production or play out
Record compressed in ProRes on two 2.5" SSDs, and supports close caption.



Controllable by DVIP/GPI/RS-232
The HDR-80 supports DVIP (Ethernet), GPI and RS-232 enabling the recorder to be controlled in different application.

Features

• ProRes Video Recorder
• 5-inch LCD touch screen for operation and monitoring live recording status
• 3G/HD/SD-SDI and HDMI input and output with audio embedding
• Multiple ProRes video compression techniques for recording (ProRes 422 Proxy, ProRes 422 LT, ProRes 422, ProRes 422 HQ) with superior 10-bit 4:2:2 image quality
• Dual 2.5" SSD storage so there is always more than enough for long hour recording
• Video input: 1 x 3G-SDI, 1 x HDMI
• Video output: 2 x 3G-SDI (one loop thru), 1 x HDMI
• Audio input: 2 x XLR Analogue
• Audio output: 2 x XLR Analogue
• Control interface includes DVIP (Ethernet), GPI and RS-232, which are adaptable in all environments
• Provides time code as well as black burst and tri-level sync signals
• Close caption function allowing the subtitle to be saved separately as meta data in .mov file format



Specifications
• Video Standard: UHD & HD

• Video Format:
- 2160p 23.98/24/25/29.97/30/50/59.94/60Hz
- 1080p 23.98/24/25/29.97/30/50/59.94/60Hz
- 1080i 50/59.94/60Hz
- 720p 50/59.94/60Hz



• Supported Video Input Signal:
- 1x 3G/12G-SDI, 3x 3G-SDI
- 1x HDMI 2.0, 1x HDMI 1.4



• Monitoring / Playback Output:
- 1x 3G/12G-SDI
- 1x HDMI 2.0, 3x HDMI 1.4



• Analog Audio Input / Output:
- 2x Balanced XLR (Stereo pair)
- 2x Balanced XLR (Stereo pair)



• Embedded Audio:
- SDI Input / Output (8CH )
- HDMI Input / Output (8CH)

• Storage Medium: 2.5” SSD, USB Flash Drive, SD Card

• Estimated Record Time (min per 10GB):
- SD: 90 (Proxy), 39 (LT), 27 (Standard), 18 (HQ)
- HD: 27 (Proxy), 11.5 (LT), 8 (Standard), 5.5 (HQ)
- 3G: 13 (Proxy), 6 (LT), 4 (Standard), 2.5 (HQ)



• Recording Media: Removable SSD,USB, SD Card

• Storage File System: exFAT

• Recorded File Format: QuickTime .MOV

• Video Recording Bit Rate / Color Sampling:
- ProRes HQ 4:2:2
- ProRes Standard 4:2:2
- ProRes LT 4:2:2
- ProRes Proxy 4:2:2



• Audio Recording Format:
- Uncompressed PCM
- Sampling rate 48KHz 24bit



• Time Code In / Out: Yes

• External Sync / Genlock: Black Burst & Tri-level with loop thru

• Chassis: Desktop

• Weight: 2.8 kg

• Operating Temp. Range: 0~40 °C
