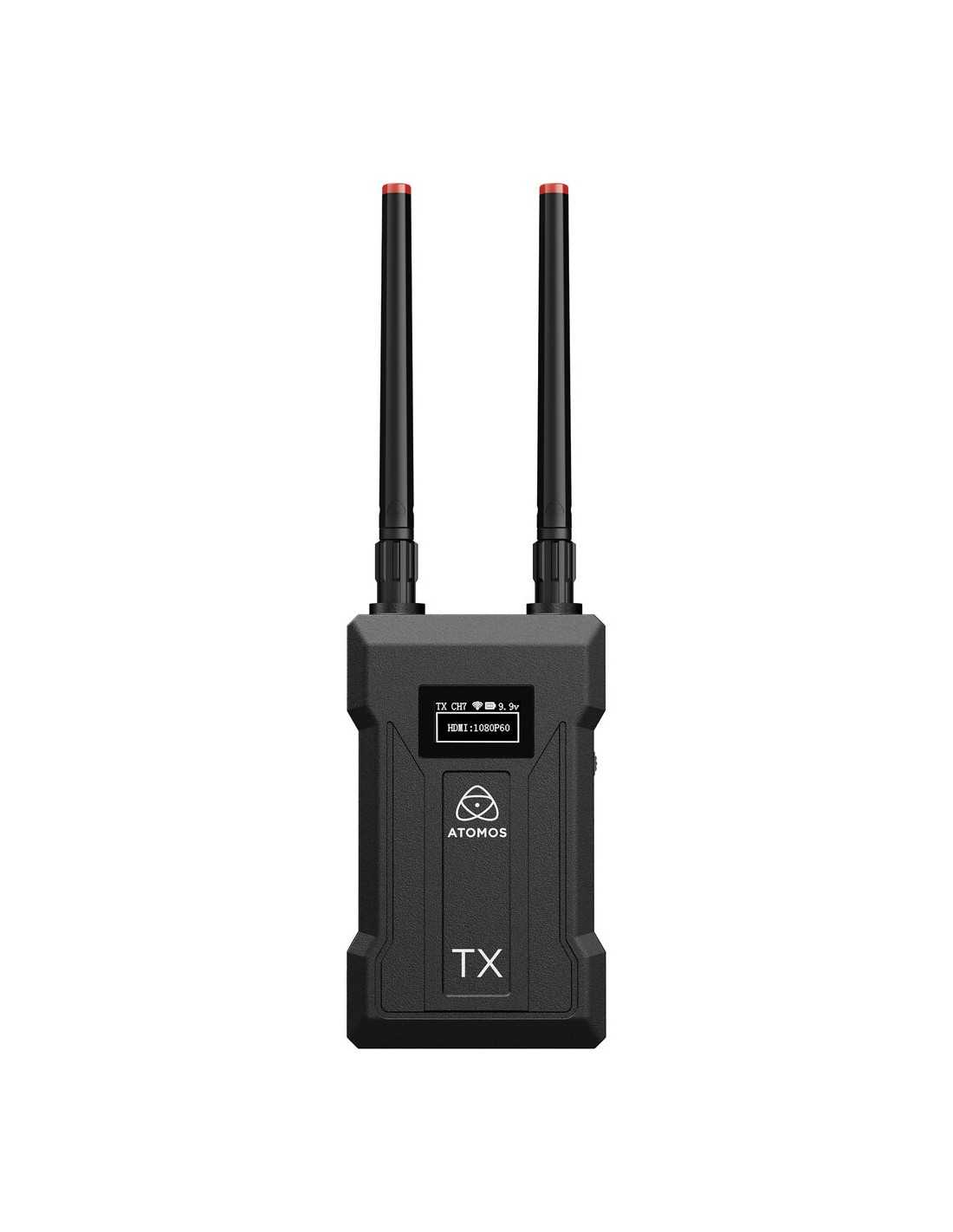

Atomos TX 4K/HD Wireless Video Transmitter

Add 4K30 wireless video transmission to your production using the versatile TX 4K/HD Wireless Video Transmitter from Atomos. The transmitter provides HDMI and SDI inputs and features an HDMI loop output. It can transmit to up to four compatible Atomos receivers up to a 985' line-of-sight distance away. It can also transmit directly to Android and iOS devices for complete mobile monitoring.

The unit transmits using the free-to-use 5 GHz frequency band for interference-free wireless transmission. It supports up to UHD 4K30 video via the HDMI ports and up to 1080p60 video via the SDI input. In addition to the USB-C port, the unit can be powered using a DC power adapter or an L-series type battery using the integrated battery plate.

Quick Features

• Compact and portable
• Transmits up to 4K30 via HDMI and 1080p60 via SDI
• 5 GHz Wi-Fi transmission with strong anti-interference
• Range of up to 300m
• Powered by L-series battery slot, USB-C input, or 9 to 16 VDC input
• Transmit to iOS or Android smartphones
• Supports up to four receivers per transmitter

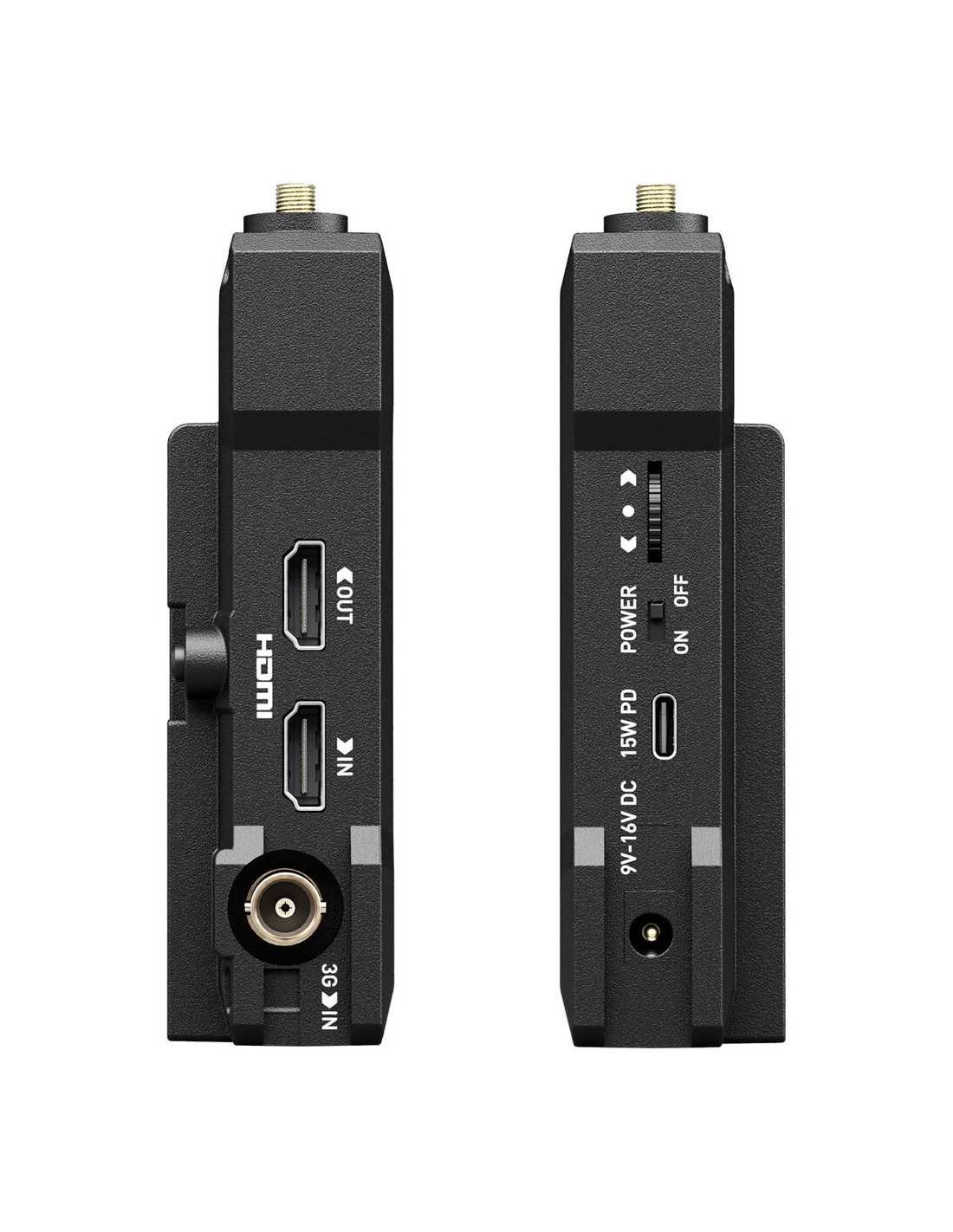

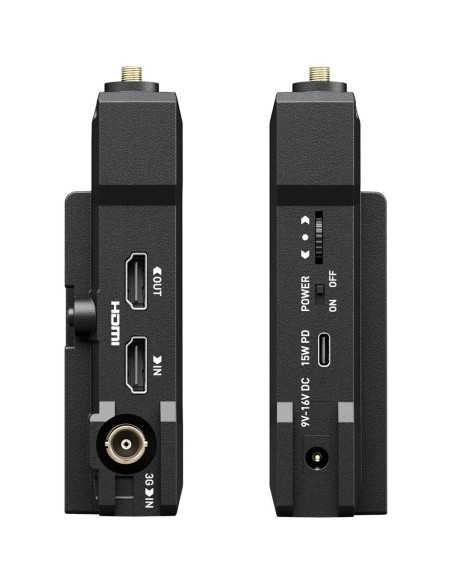

• Transmitter features two HDMI inputs, one SDI input, and one HDMI loop output

Items Included

• Wireless video transmitter, USB A-C 2.0 cable (1m)
• 2 x Wi-Fi antenna
• 5 x antenna tips
• 1/4-inch screw mount
• Quick Start Guide
