SWIT FLOW500 SDI & HDMI Wireless Video & Audio Transmission System

FLOW500

New

SWIT FLOW500 SDI & HDMI Wireless Video & Audio Transmission System, Up to 500' Line-of-Sight Range, 1 x Transmitter & 1 x Receiver, Transmits up to 1080p60, L-Series Plate, Uncompressed HDMI & 3G/HD/SD-SDI, 2-Channel SDI/HDMI Embedded Audio, Multicasting to up to 4 x Receivers, AES 128-Bit Encryption, L-Series Battery or DC Adapter Power

More details

In Stock

€ 1.017,48
€ 834,00tax excl.

Add to my wishlist

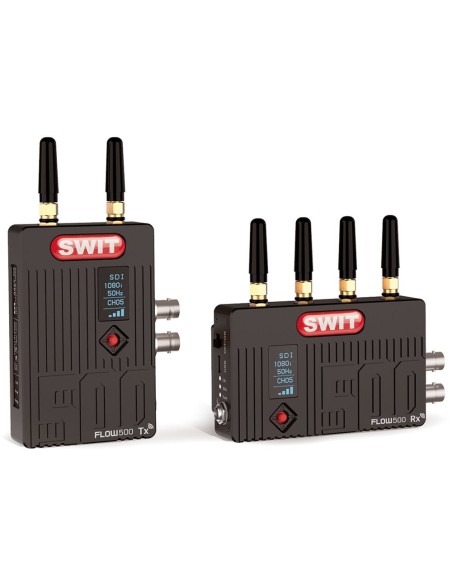

View your video capture up to 500' away from your camera using the FLOW500 SDI & HDMI Wireless Video System from SWIT. This set includes one transmitter and one receiver, each with a Sony L-Series type battery plate and DC input, that transmit up to 1080p60 uncompressed video and feature 3G/HD/SD-SDI and HDMI inputs/outputs, AES-128 encryption, and embedded SDI/HDMI stereo audio.



  • Up to 500' Transmission
  • Transmits uncompressed video and embedded audio at distances up to 500' (line-of-sight)
  • Robust wall-penetrating transmission with RF and image quality optimization

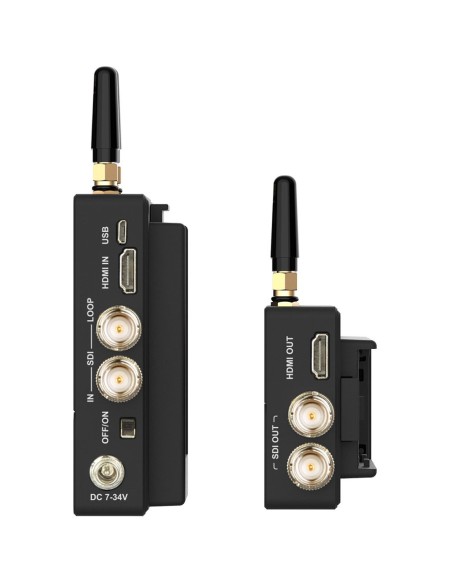

  • SDI & HDMI Inputs/Outputs
  • Transmitter has single HDMI Type-A input
  • Transmitter has single SDI (BNC) input and loop output
  • Receiver has single HDMI and dual SDI (BNC) outputs
  • 1080p60 HD Video
  • Supports multiple video resolutions up to 1080p60
  • 5.1 to 5.9 GHz Transmission
  • License-free operation at 5.1 to 5.9 GHz
  • Automatic DFS-compliant and manual non-DFS channel selection


Embedded Audio
2-channel embedded SDI/HDMI audio transmission


Timecode Transmission
Transmits timecode from original video source


Multicast Compatible
Use with separately available receivers to multicast one transmitter to up to four receivers


AES Encryption
AES128 encryption secures your footage transmission


Reclocking
Reclocking for optimal signal transmission


USB Updating
Firmware updating via micro-USB port on both transmitter and receiver


OLED Display
1" OLED display on both transmitter and receiver


Power Options
Transmitter and receiver both have:

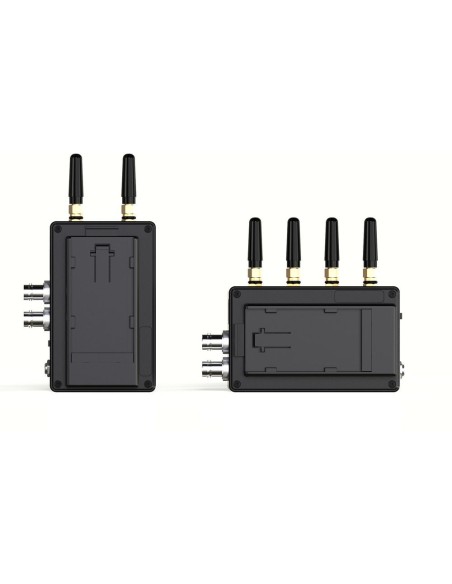

One Sony L-Series type battery plate
One 5.5mm DC barrel input


Mounting Options
Transmitter and receiver both have 1/4"-20 mounting threads
Includes one articulated arm with 1/4"-20 and shoe mounts


In the Box

  • SWIT FLOW500 SDI & HDMI Wireless Video & Audio Transmission System
  • Transmitter
  • Receiver
  • 6 x Antenna
  • Locking D-Tap to Barrel Cable (2')
  • Power Adapter
  • Articulating Arm
