Switronix Recon X5 HD-SDI Wireless TX/RX System with V-Mount

Product code
REC5 -V
EAN
184323002429
Condition
New
Ships in 5-7 days - Subject to change
Read our reviews

Switronix Recon X5 HD-SDI Wireless TX/RX System with V-Mount, Real-Time Wireless Video Transmission, Transfers Uncompressed HD with Audio, 150m Transmission Range, HD-SDI Input with Loop Through Output, Two HD-SDI Outputs on Receiver, 5.1 to 5.9GHz Channel Selectable, Graphical Interface on Receiver, V-Mount Plate on TX/RX, 1/4"-20 Thread Mounts

Talk to an expert
Whatsapp Live Chat


The Recon X5 HD-SDI Wireless TX/RX System with V-Mount from Switronix is a transmitter and receiver set that wirelessly sends SD/HD-SDI video, along with embedded audio, over 150m from a camera to a monitor. The signal is transferred uncompressed and with a latency of less than one video frame at 60fps, allowing for real-time monitoring. Transmitted data is encrypted for security.

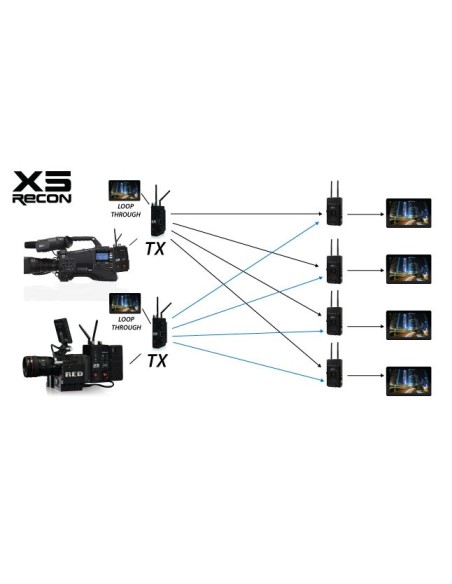

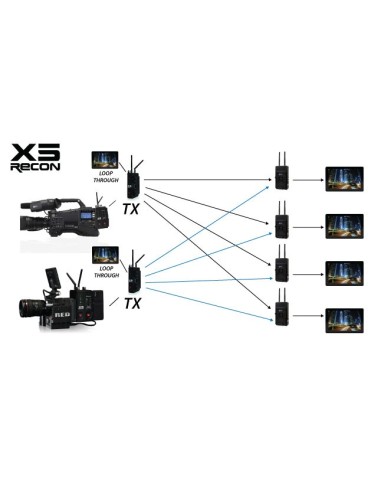

A graphical interface on the receiver lets you switch from auto frequency selection or manually select a 5.1 to 5.9GHz channel. You can also name transmitters and receivers, select latency, and adjust settings. The ability to name transmitter and receivers is particular useful on multi-camera shoots. You can even use the receiver as a camera feed switch and choose between feeds from multiple transmitters on set.
The receiver is powered by a V-Mount battery using the attached battery plate, or from other external sources via a 6-pin 2B LEMO connection. The transmitter features an attached V-Mount battery plate for power. Additionally, the transmitter can be converted to function as a module for Switronix's X-Mod system. Simply remove the battery plate to reveal a 2-pin Amphenol connector, and connect directly to the JetPack X and/or to the battery back of an ENG camera.


Key Features
150m real-time transmission from camera to monitor
SD/HD-SDI input and loop through output on transmitter
Two SD/HD-SDI outputs on receiver
Sends uncompressed HD video with embedded audio
Latency is less than one video frame at 60fps
Receiver powered by V-Mount battery
Transmitter powered by V-Mount battery
Three 1/4"-20 threads on bottom of transmitter and receiver; one centered and two 18mm apart for adding rod mounts



Specs



HousingAluminum
Transmission Distance150m
Frequency5.1 to 5.9 GHz
Video Input / OutputTransmitter:
1 x HD-SDI input
1 x HD-SDI loop through output

Receiver:
2 x HD-SDI output
Supported Formats1080PsF 23.98/25
1080p 24/25/29.97
1080i 50/60
720p 24/25/50/60
480i
576i
PowerTransmitter: 11 to 17 VDC via V-Mount battery plate

Receiver: 11 to 17 VDC via V-Mount battery plate or 6-pin 2B LEMO

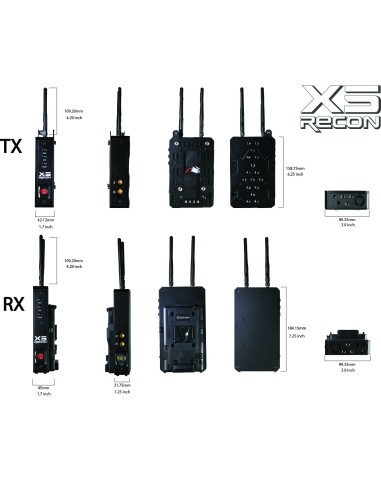

DimensionsTransmitter: 6.1 x 3.9 x 1.3" (15.5 x 9.9 x 3.3 cm)
Receiver: 7.2 x 3.9 x 1.25" (18.3 x 9.9 x 3.2 cm)
WeightTransmitter: 1.4 lb (0.6 kg)
Receiver: 1.4 lb (0.6 kg)



Alimentazione
batteria V-mount
Application
Broadcast
Digital Interface
HD-SDI
REC5 -V
New
184323002429
