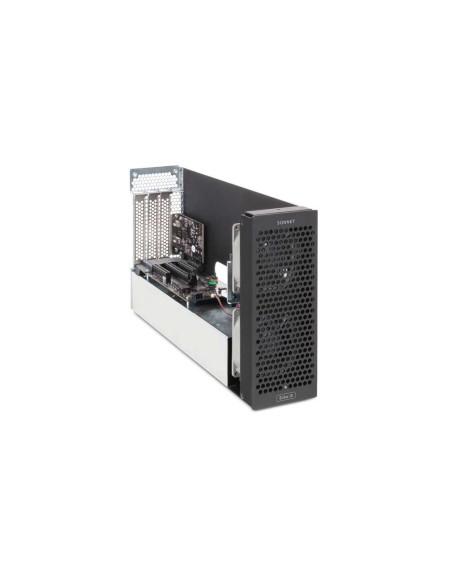

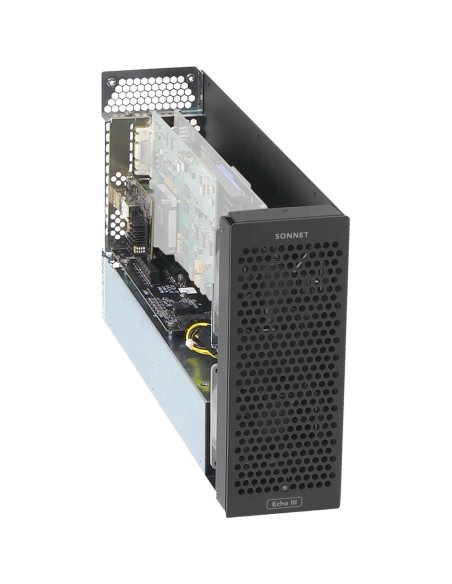

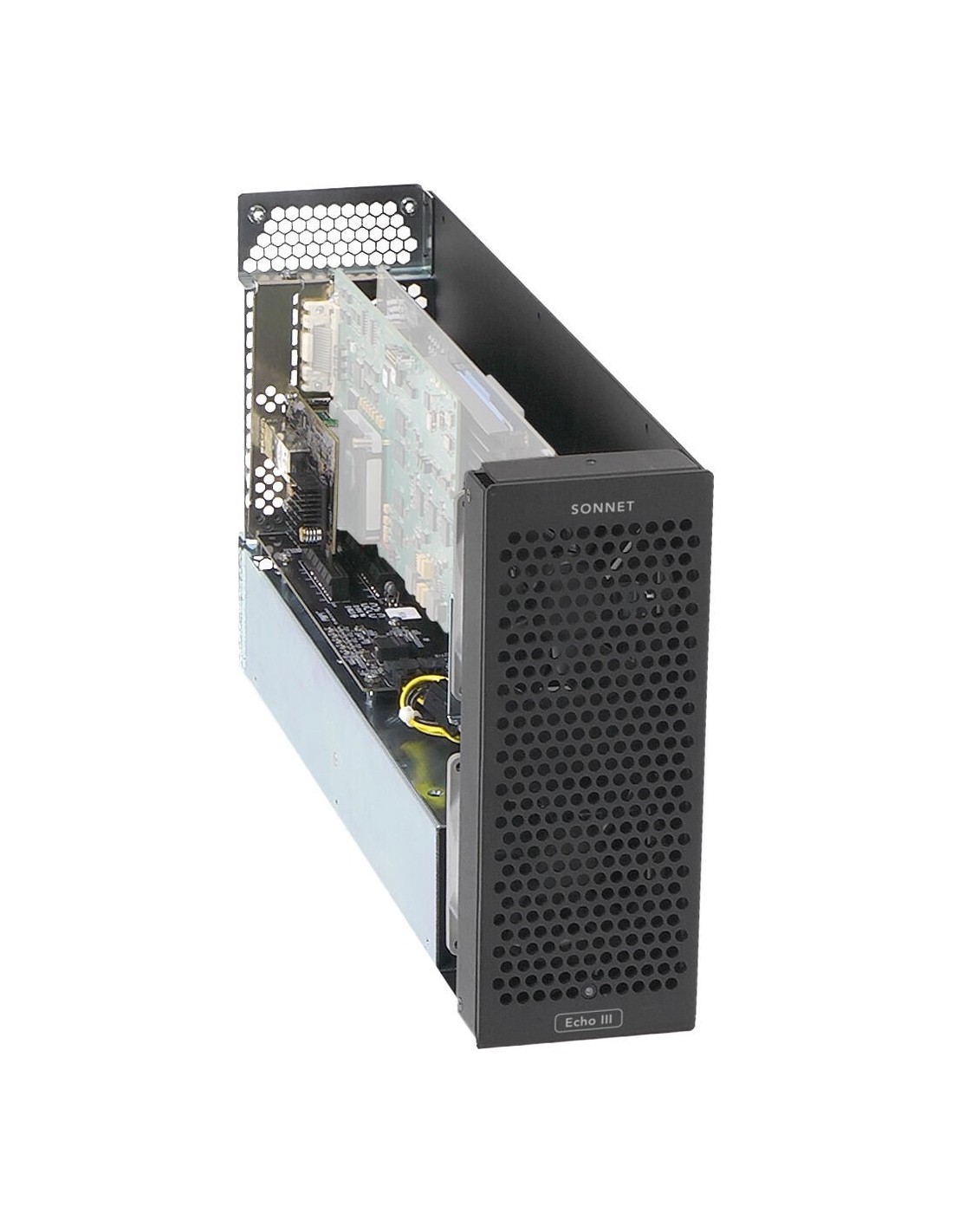

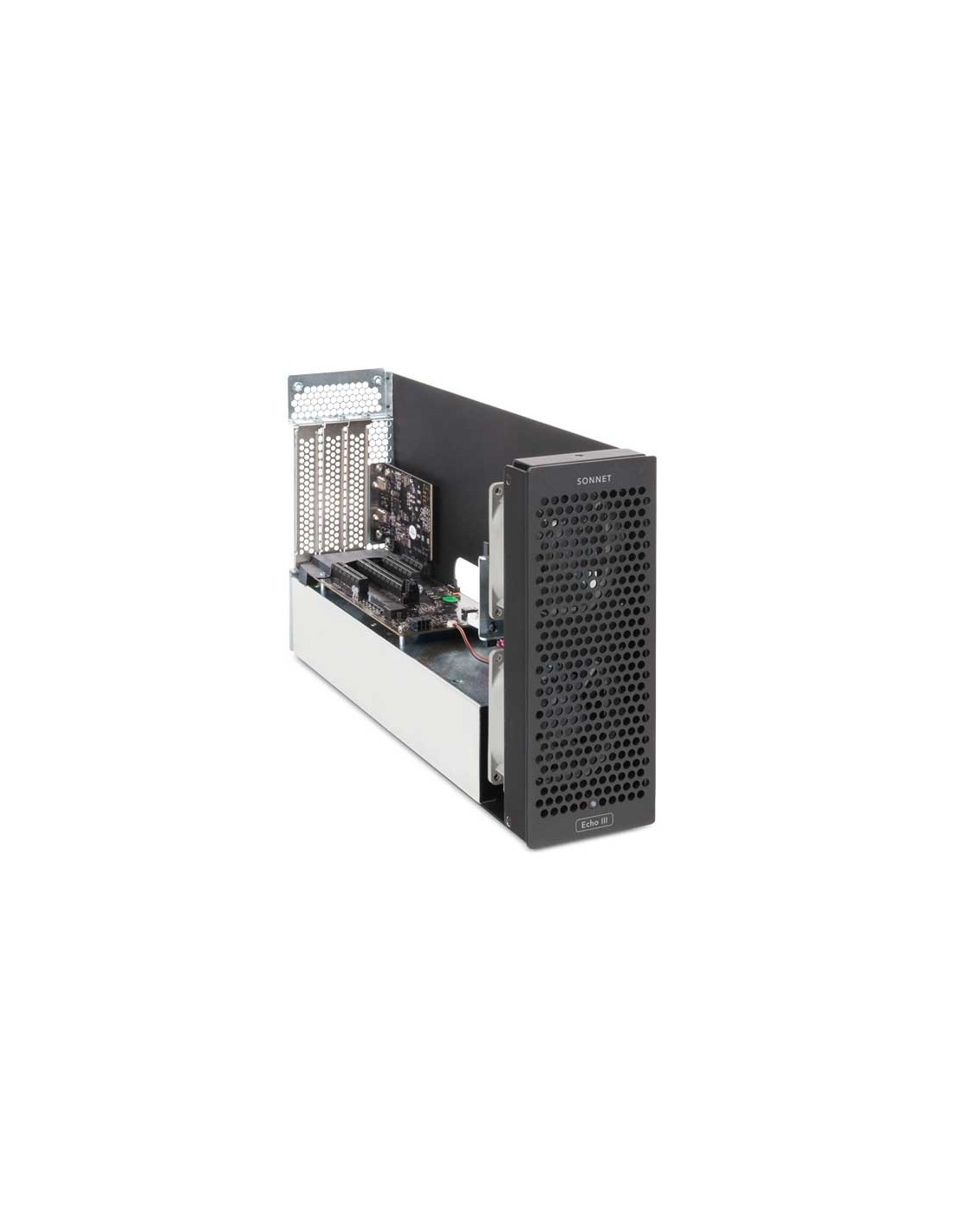

Sonnet DuoModo Echo III Module Thunderbolt 3

The DuoModo™ Echo™ III Module connects up to three PCIe cards to computers without card slots. The module supports three full-height, full-length Thunderbolt™-compatible non-GPU PCIe cards; provides 400W of power for the most demanding of PCIe cards, including qualification from Avid for Pro Tools | HDX PCIe cards; features quiet, dual temperature-controlled Noctua fans rated at 17 dbA; and connects through super fast 40Gbps Thunderbolt interface.

Features

Three Versatile PCIe Slots:

Supports Three Full-height, Full-length PCIe Cards

One x16 Plus Two x8 PCIe 3.0 Slots

Supports Every Thunderbolt-compatible non-GPU Card

AVID QUALIFIED – Supports up to Three Avid Pro Tools | HDX PCIe Cards

View PDF of Supported PCIe Cards

400W of Power:

Built-in 400W Power Supply with 75W Auxiliary Power Connector

Supports Power-hungry, non-GPU Cards Including Avid HDX

Powers On and Off Automatically with Connected Computer

Quiet Fans:

Dual Noctua Fans Offer Ultra-quiet Operation

Temperature-controlled, Variable-speed

Rated at 17 dbA

Thunderbolt 3 Interface:

Two Thunderbolt 3 Ports

40Gbps Thunderbolt 3 Interface Offers 2750 MB/s of PCIe Bandwidth to the Installed Cards

Compatible with Apple® M1 and Thunderbolt 4 Computers

Thunderbolt 3 (40Gbps) Cable Included

ThunderLok 3 Thunderbolt Connector Retainer clip Included

Why Sonnet?

2-year Product Warranty

Free Lifetime Customer Technical Support

Designed and Made in the USA
