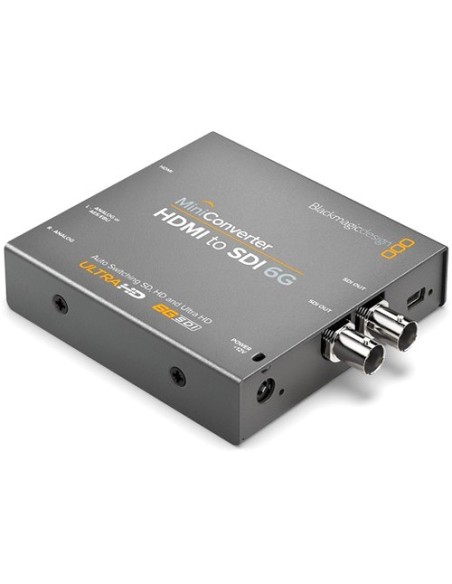

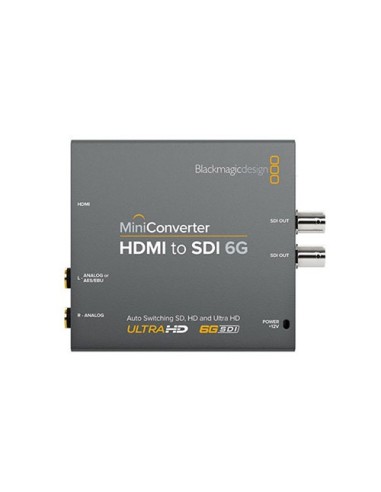

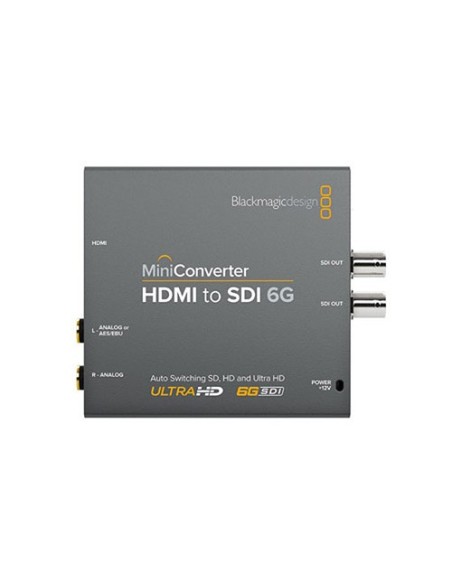

Blackmagic Design Mini Converter - HDMI to SDI 6G

View larger

Display all pictures

Blackmagic Design Mini Converter - HDMI to SDI 6G

Model CONVMBHS24K6G

Condition New

Blackmagic Design Mini Converter - HDMI to SDI 6G, 4K HDMI Input2 x 6G-SDI Outputs, Supports SD, HD, UHD 4K & DCI 4K Signals, Automatic Input Signal Detection, 24-Bit, 48 kHz Audio, Analog & AES-EBU Digital Audio Inputs, Embeds Audio Into SDI Output, Settings via Mini Switches or Software, USB 2.0 Port for Firmware Updates, 12V Universal Power Supply Included

More details

You can purchase this product in installments with Consel. Click here for more information.

► GRENKE Location 24/60 Months
► EU Warranty
Send to a friend
Send to a friend

Blackmagic Design Mini Converter - HDMI to SDI 6G
Blackmagic Design Mini Converter - HDMI to SDI 6G, 4K HDMI Input2 x 6G-SDI Outputs, Supports SD, HD, UHD 4K & DCI 4K Signals, Automatic Input Signal Detection, 24-Bit, 48 kHz Audio, Analog & AES-EBU Digital Audio Inputs, Embeds Audio Into SDI Output, Settings via Mini Switches or Software, USB 2.0 Port for Firmware Updates, 12V Universal Power Supply Included
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

More info
Reviews

The Blackmagic Design Mini Converter - HDMI to SDI 6G converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 60p. This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4" input jacks which support 4 channels of AES/EBU digital audio or 2 channels of analog audio.

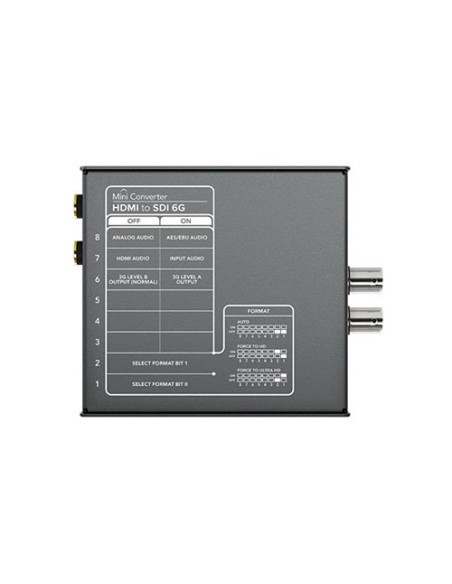

The Mini Converter's settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated.

The device is powered by an included 12V power supply and includes international socket adapters.

Additional Features

4:2:2 Sampling and color precision
HD scaler and SD down conversion
24-bit, 48 kHz audio sampling
Compliant with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601 standards

No customer comments for the moment.
