Blackmagic Design - Intensity Pro HDMI / Component Out

BINTSPRO4K

New

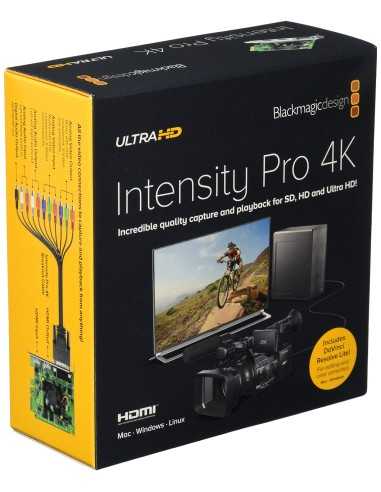

Blackmagic Intensity Pro 4K, the replacement Model for the highly popular Intenisty Pro and is by far the easiest and highest quality way to capture video on your computer! Intensity Pro 4K has all the same great features of the original Intensity Pro capture card but now you also get Ultra HD and 1080p60 !

More details

Ordinabile

You can purchase this product in installments with Consel. Click here for more information.


€ 207,46
€ 170,05tax excl.

-5%

Before € 218,38

Add to my wishlist

Capture and play back in up to Ultra HD resolution with Blackmagic's Intensity Pro 4K I/O Card. Intensity Pro 4K offers all the same features of the original Intensity Pro but additionally supports Ultra HD 2160p at 30 fps and Full HD 1080p at 60 fps.

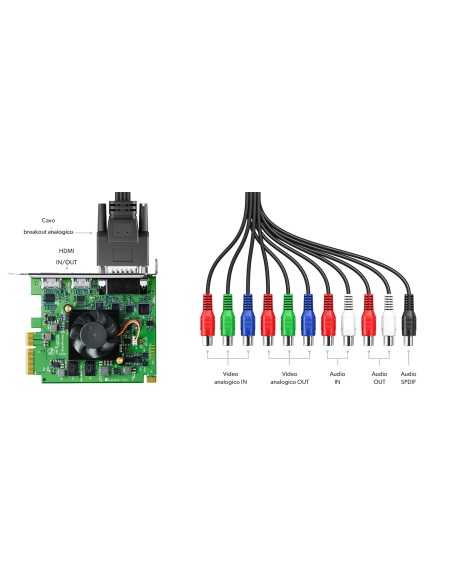

Ingest HDMI, YUV, S-Video, and NTSC/PAL sources to your Mac, PC, or Linux computer and save them in compressed or uncompressed formats with the included Media Express software, bypassing any unnecessary levels of compression. Pull up real-time previews on high resolution displays for more accurate color grading and client review. Create high frame rate walk-throughs of your gameplay in full 10-bit quality YUV video and deep color. Connect your cameras for video conferencing, presentations, and live streaming of live events, webcasts, seminars, presentations, concerts, and more. A breakout cable is included providing RCA video and audio inputs and outputs as well as SPDIF audio output, allowing you to work with equipment from old VHS decks to HDTV HDMI displays.



Intensity Pro 4K is also directly compatible with all of the most popular editing, design, streaming, audio, and video applications available for Mac and PC. This means you can capture directly to your software in formats such as ProRes, DNxHD, and QuickTime and avoid extra steps and possible extra compression. Work seamlessly with DaVinci Resolve, Final Cut Pro X, Media Composer, Premiere Pro, Fusion, After Effects, Photoshop, ProTools, Resolume, Nuendo, Flash Media Live Encoder, ProCaster, and more.



Intensity Pro 4K is a 4-lane PCIe card compatible with 4, 8, and 16 lane PCIe slots. The HDMI video connections are switchable between SD, HD, and Ultra HD, and Component analog video connections are switchable between SD and HD. The HDMI connections feature HDMI standard 1.4b, which supports deep color and automatically configures to connected displays. (HDMI input is unable to capture from copy protected HDMI sources, so always confirm copyright ownership before capture or distribution of content.)



The included Blackmagic Media Express software allows you to effectively capture, organize, and manage all of your media.



Key Features

  • Capture and playback in up to Ultra HD 2160 at 30 fps
  • Capture 1080p content at up to 60 fps, excellent for gameplay walk-throughs and more
  • Capture directly to your compatible NLE or Mac, PC, Linux computer
  • Save in compressed or uncompressed formats with the included Media Express software
  • Output to HDTVs for more accurate color correction and client-reviews
  • Connect your cameras for live streaming, video conferencing, presentations, and more
  • Included analog breakout cable lets you capture from VHS and DVD players
  • Manage all your media in the included Media Express software



Technical Specifications



HDMI Video Input1x HDMI type A connector
HDMI Video Output1x HDMI type A connector
HDMI Audio Input8 channels embedded in SD, HD, and Ultra HD
HDMI Audio Output8 channels embedded in SD, HD, and Ultra HD
Analog Video InputComponent, Composite or S-Video via breakout cable
Analog Video OutputComponent, Composite or S-Video via breakout cable
Analog Audio Input2 channel RCA HiFi audio in 24-bit
Analog Audio Output2 channel RCA HiFi audio in 24-bit
SPDIF Audio Output2 channel 24-bit
Multiple Rate SupportHDMI video connections are switchable between SD, HD, and Ultra HD. Component analog video connections are switchable between SD and HD.
Computer InterfacePCI Express 4 lane, compatible with 4, 8, and 16 lane PCIe slots
SD Format Support625i/50 PAL and 525i/59.94 NTSC, 480p
HD Format Support720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Format Support2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
HDMI Video SamplingRGB 4:4:4 in HD and YUV 4:2:2 in Ultra HD
HDMI Audio SamplingTelevision standard sample rate of 48 kHz and 24-bit
Color SpaceREC 601, REC 709
HDMI Color Precision10-bit
HDMI ConfigurationHDMI 1.4b supports deep color and automatically configures to connected display
Copy ProtectionHDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
UHD/HD Down ConversionSoftware based down conversion during video playback
HD Up ConversionReal time SD to 1080 HD and 720 HD during video capture
Real Time EffectsFinal Cut Pro X internal effects; Premiere Pro CC Mercury Playback Engine effects; Avid Media Composer internal effects
Internal Software UpgradeFirmware built into software driver, loaded at system start or via updater software
Physical InstallationPCI Express 4 lane, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows 7 and 8, and Linux
Operating Temperature32 to 104°F (5 to 40°C)
Storage Temperature-4 to 113°F (-20 to 45°C)
Relative Humidity0 to 90% non-condensing
Dimensions3.4" depth (8.6 cm)
