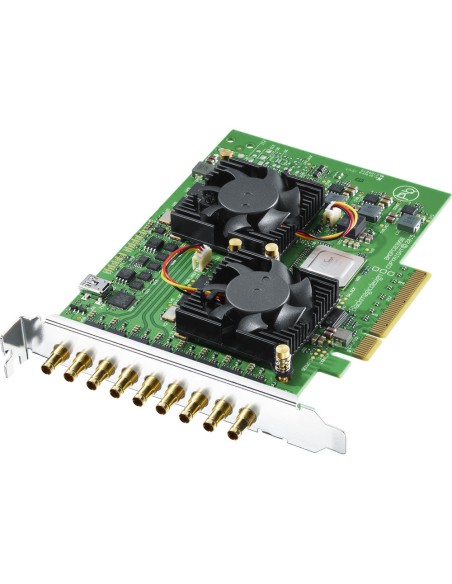

Blackmagic Design DeckLink Quad 2 PCIe video I/O card with 8 SDI I/O

Product code
BDLKDVQD2
EAN
9338716003468
Condition
New
Available for order
Ships in 5-7 days - Subject to change
Read our reviews
€905.00
( €905.00 + IVA )

Blackmagic Design DeckLink Quad 2, PCIe video I/O card with 8 separately switchable 3G-/HD-/SD-SDI inputs resp. outputs, This PCIe video I/O card provides 8 3G-/HD-/SD-SDI connectors, which can be separately switched from input to output.

Talk to an expert
Whatsapp Live Chat


This PCIe video I/O card provides 8 3G-/HD-/SD-SDI connectors, which can be separately switched from input to output. Up- and down-conversion between SD and HD signals as well as cross-conversion between HD (720) and Full HD is possible. It is capable of processing digital signals with up to HD resolution (1920x1080) and 60 frames per second.



Properties:
This PCIe video I/O card provides 8 3G-/HD-/SD-SDI connectors, which can be separately switched from input to output. Up- and down-conversion between SD and HD signals as well as cross-conversion between HD (720) and Full HD is possible. It is capable of processing digital signals with up to HD resolution (1920x1080) and 60 frames per second.



Down-conversion from HD to SD
Up-conversion from SD to HD (720) and Full HD in playback mode
Cross-conversion from HD (720) to Full HD and vice versa in playback mode
Real time effects: internal effects in Final Cut Pro X, Mercury Playback Engine effects in Premiere Pro CC, internal effects in Avid Media Composer
3:2 pulldown-removal by reading the VITC (Vertical Interval Timecode)
Colour accuracy: 8/10 Bit YUV 4:2:2 and 8/10/12 Bit RGB 4:4:4
Colour space: Rec 601, Rec 709
SDI signals are sampled in 4:4:4 or 4:2:2
Audio signals are sampled with 48 kHz and 24 Bit
Compatible with Windows, Mac OS X and Linux
3 years limited manufacturer's warranty


Supported codecs:
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), uncompressed 8-Bit 4:2:2, uncompressed 10-Bit 4:2:2, uncompressed 10-Bit 4:4:4


Supported formats:
HD:
1920x1080 progressiv mit 23,98 / 24 / 25 / 29,97 / 30 / 50 / 59,94 / 60 fps
1920x1080 PsF mit 23,98 / 24 / 25 / 29,97 / 30 fps
1920x1080 interlaced mit 50 / 59,94 / 60 fps
HD (720):
1280x720 progressiv mit 50 / 59,94 / 60 fps
SD:
525 Zeilen mit 29,97 fps (NTSC), 625 Zeilen mit 25 fps (PAL)


Supported Applications:
DaVinci Resolve, Blackmagic Design Fusion, Apple Final Cut Pro X, Adobe Premiere Pro CC/After Effects CC/Photoshop CC, Nuke, Steinberg Cubase/Nuendo, Avid Media Composer/Pro Tools/Symphony/NewsCutter, Tools On Air just:in/live:cut/just:play/just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro/Studio/Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity/InfoCaster


Data Links:

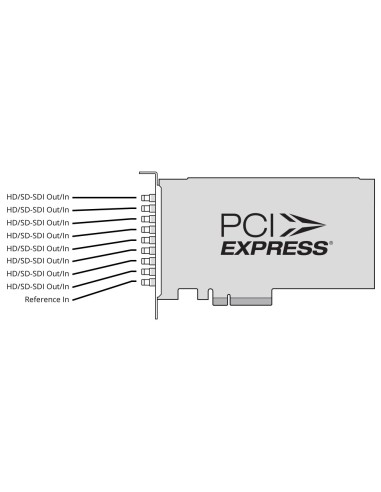

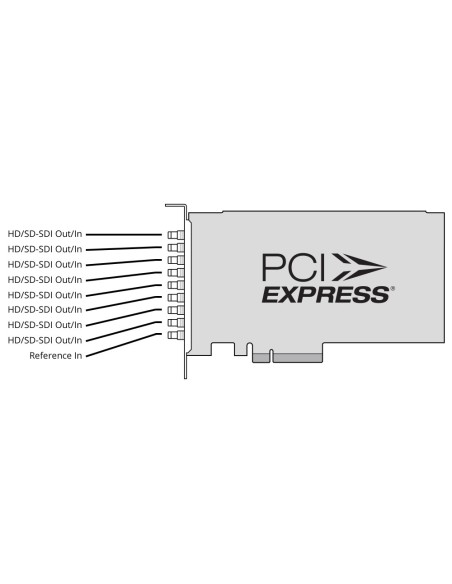

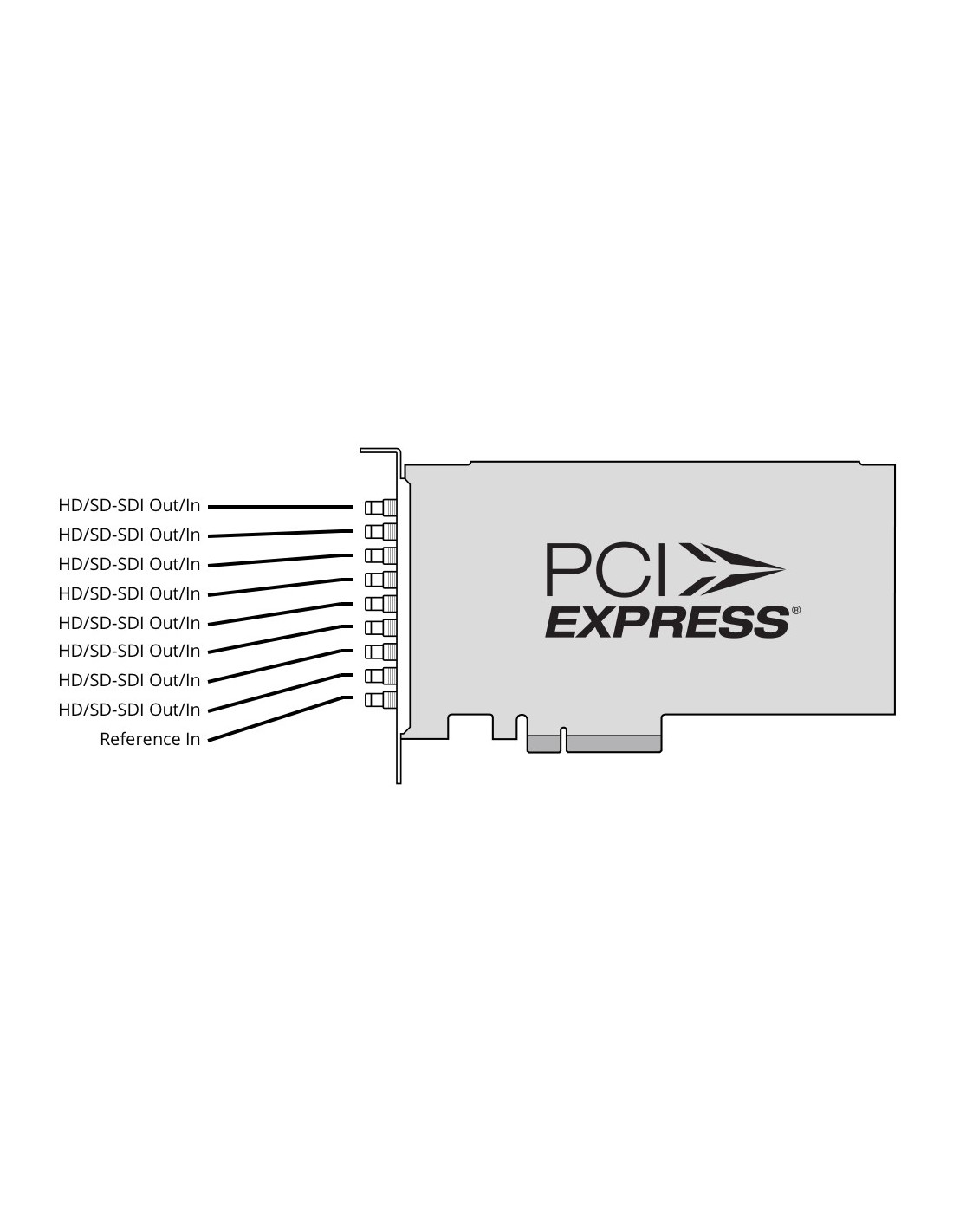

8x 3G-/HD-/SD-SDI input/output with 16 channels Embedded Audio per connector, DIN 1.0/2.3 (switchable separately)
1x Sync input (Blackburst/Trisync), DIN 1.0/2.3


System requirements of the connected computer:
PCIe (PCI Express) slot with 8 or 16 lanes
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or higher
Windows 8 64 Bit or Windows 10 64 Bit
Linux


General product information:

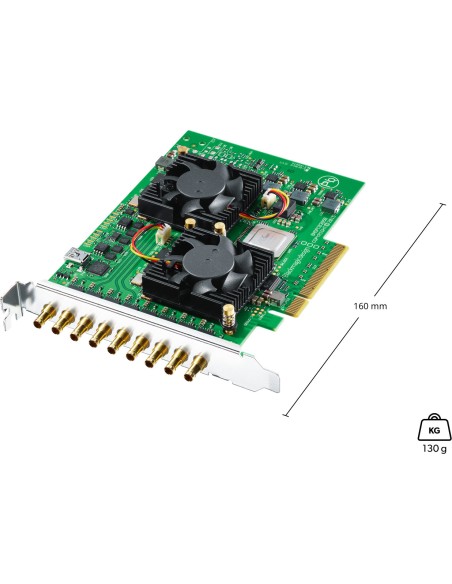

Overall length: 16 cm
Weight: 130 g
Operating temperature: 5° to 40°C


Included in delivery:
SD card with software (Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver for Mac OS X, Windows 8 and Windows 10, Linux)

BDLKDVQD2
New
9338716003468

Blackmagic has grown rapidly to become one of the world's leading innovators and manufacturers of creative video technology. And that's because our philosophy is refreshing and simple - to help true creativity blossom.

Blackmagic Design's founders have had a long history in post-production editing and engineering. With extensive experiences in high-end telecine, film and post, harnessed with a real passion for perfection, Blackmagic set out to change the industry forever.

A company dedicated to quality and stability and focusing on where it's needed most; Blackmagic has created some of the most talked about products in the industry. World famous for their unbeatable codecs, Blackmagic envisioned truly affordable high-end quality editing workstations built upon Blackmagic software and hardware.
