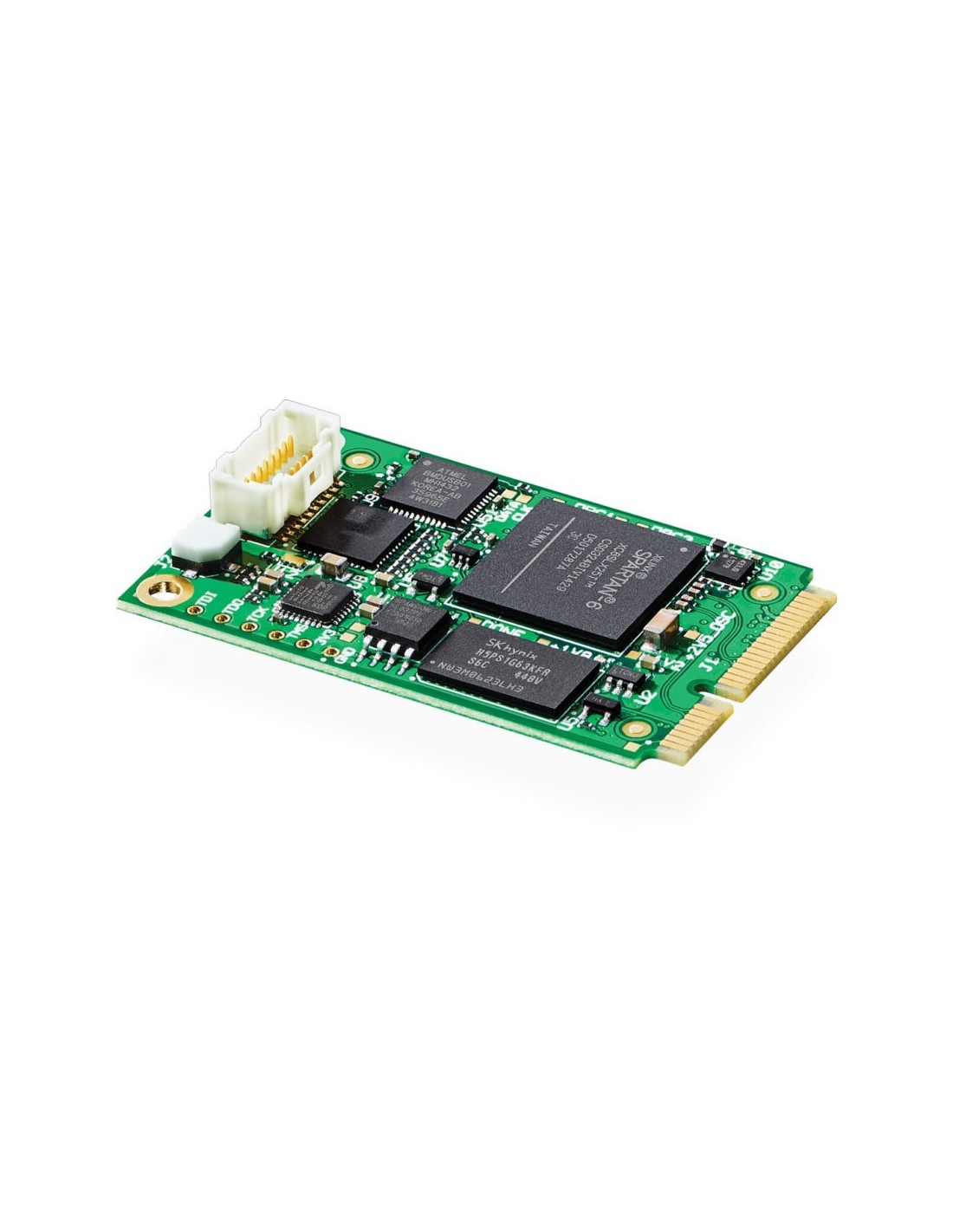

La DeckLink SDI Micro è una scheda compatibile con i computer dotati di uno slot Mini PCIe di prima generazione con una slot. Tuttavia, la porta HDMI supera di 8mm la specifica dell’altezza della scheda di 3 mm, motivo per cui è necessario prestare attenzione al luogo d’installazione prima dell’acquisto.
La DeckLink SDI Micro è una scheda compatibile con i computer dotati di uno slot Mini PCIe di prima generazione con una slot. Tuttavia, la porta HDMI supera di 8 mm la specifica dell’altezza della scheda di 3 mm, motivo per cui è necessario prestare attenzione al luogo d’installazione prima dell’acquisto.
Specifiche Tecnica DeckLink Micro Recorder Mini PCIe
Connessioni
PCIx1 Gen 1 - Scheda compatta con specifiche elettromeccaniche PCI Express®. N.B.: l’altezza del connettore HDMI (8 mm) eccede le specifiche standard di 3mm
Standard
Formati SD compatibili
525i/59.94 NTSC, 625i/50 PAL.
Formati SD compatibili
720p50, 720p59.94, 720p60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080i50, 1080i59.94, 1080i60,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30.
Campionamento video
4:2:2.
Precisione colore
8, 10-bit YUV 4:2:2.
Conformità alla norma
SMPTE 259M, 292M, 296M, and HDMI.
______________
Accessori disponibili separatamente
Cavo HDMI, codice di ordine: CABLE-BDLKMIR/HDMI
Cavo SDI, codice di ordine: CABLE-BDLKMIR/SDI
BDLKMICROREC
New
9338716003031
